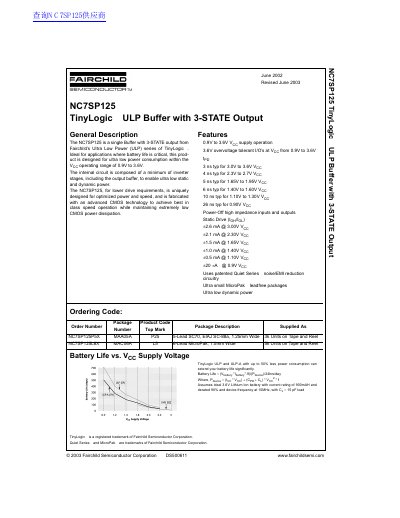

Fairchild NC7SP125 TinyLogic ULP Buffer with 3-STATE Output Datasheet
The NC7SP125 is a single Buffer with 3-STATE output designed for ultra low power consumption within the Vcc operating range of 0.9V to 3.6V. It features overvoltage tolerant I/Os at Vcc from 0.9V to 3.6V and uses patented Quiet Series noise/EMI reduction circuitry.
The device is available in two leadfree packages: the 5-Lead SC70 (EIAJ SC-88a) and the 6-Lead MicroPak. The datasheet provides absolute maximum ratings, recommended operating conditions, DC electrical characteristics, AC electrical characteristics, loading diagrams, and physical dimensions for both package types.
Fairchild NC7SP125 specifications
| Supply Voltage (Vcc) | 0.9V to 3.6V |
|---|---|
| Operating Temperature Range | -65°C to +150°C (Storage) |
| Static Drive Current @ 3.0V | 42.6 mA |
| Propagation Delay (Typ) @ 3.0V to 3.6V | 3 ns |
| Package Types | 5-Lead SC70, EIAJ SC-88a; 6-Lead MicroPak |
Source: Fairchild NC7SP125 TinyLogic ULP Buffer with 3-STATE Output Datasheet
All Fairchild NC7SP125 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for this buffer?
The device operates with a supply voltage ranging from 0.9V to 3.6V.
From: Fairchild NC7SP125 TinyLogic ULP Buffer with 3-STATE Output Datasheet
How much power does the device consume when turned off?
The quiescent supply current is a maximum of 5 uA when powered off.
From: Fairchild NC7SP125 TinyLogic ULP Buffer with 3-STATE Output Datasheet
What is the operating voltage range for the NC7SP125?
The device operates with a supply voltage (Vcc) from 0.9V to 3.6V.
From: Fairchild NC7SP125 TinyLogic ULP Buffer with 3-STATE Output Datasheet
Does the NC7SP125 feature noise reduction circuitry?
Yes, it uses patented Quiet Series™ noise/EMI reduction circuitry.
From: Fairchild NC7SP125 TinyLogic ULP Buffer with 3-STATE Output Datasheet
