KBL005-KBL10 is a bridge rectifier produced by Fairchild Semiconductor Corporation. It features reliable low cost construction, high surge current capability and UL certification.

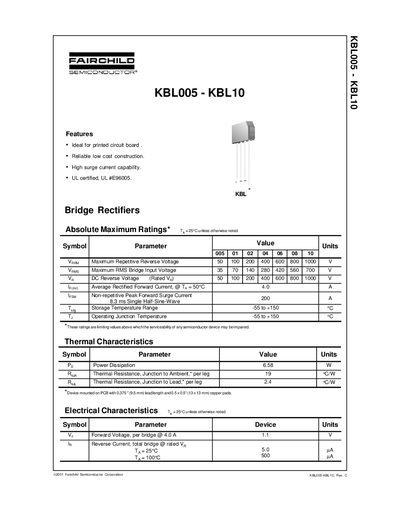

The Fairchild KBL005‑KBL10 series are bridge rectifiers designed for printed‑circuit‑board mounting. They offer low‑cost construction, high surge current capability and UL certification (UL #296005). The datasheet provides absolute maximum ratings, thermal and electrical characteristics for each voltage rating in the series.
Key sections include features, absolute maximum ratings, thermal characteristics, electrical characteristics, typical forward‑voltage curves, and product status definitions. Trademark and disclaimer information for Fairchild Semiconductor are also included.
| Maximum Repetitive Reverse Voltage (V_RRM) | 50 V – 1000 V (depending on model) |
|---|---|
| Maximum RMS Bridge Input Voltage (V_RMS) | 35 V – 700 V (depending on model) |
| DC Reverse Voltage (Rated Vp) | 50 V – 1000 V (depending on model) |
| Non‑repetitive Peak Forward Surge Current | 200 A |
| Power Dissipation (P_D) | 6.58 W |
| Forward Voltage at 4 A | 11 V |
| Operating Junction Temperature Range | -55 °C to +150 °C |
The bridge rectifiers can handle a non‑repetitive peak forward surge current of 200 A.
