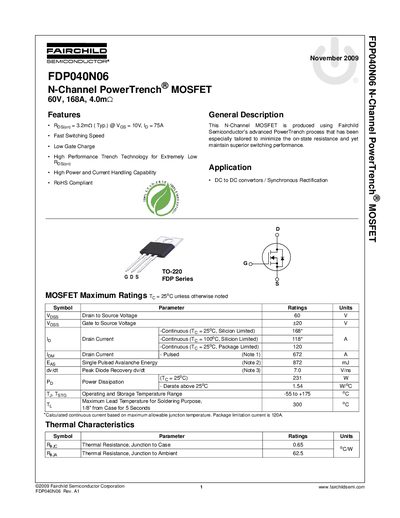

FAIRCHILD FDP040N06 handbook
The document describes the N-Channel PowerTrench MOSFET model FDPO40N06 manufactured by Fairchild Semiconductor. It is designed with advanced technology to minimize on-state resistance while maintaining superior switching performance for applications such as DC-to-DC converters and synchronous rectification.
Key specifications include a drain-to-source voltage rating of 60V, a continuous drain current of up to 168A (silicon limited), and an extremely low static drain-to-source on-resistance. The datasheet details electrical characteristics like capacitance, gate charge, and switching times, along with typical performance curves for resistance, breakdown voltage, and thermal response.
Fairchild FDP040N06 specifications
| Drain to Source Voltage | 60 V |
|---|---|
| Continuous Drain Current (Silicon Limited) | 168 A |
| Static Drain to Source On Resistance | 4.0 mQ |
| Operating and Storage Temperature Range | -55 to +175 °C |
| Package Type | TO-220 |
Source: FAIRCHILD FDP040N06 handbook
All Fairchild FDP040N06 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current rating for the FDPO40N06?
The device can handle a continuous drain current of 168 A (junction‑limited) at 25 °C.
From: FAIRCHILD FDP040N06 N-Channel PowerTrench MOSFET handbook
What is the pulsed drain current capability of the FDPO40N06?
It can sustain a pulsed drain current of up to 672 A (Note 1).
From: FAIRCHILD FDP040N06 N-Channel PowerTrench MOSFET handbook
