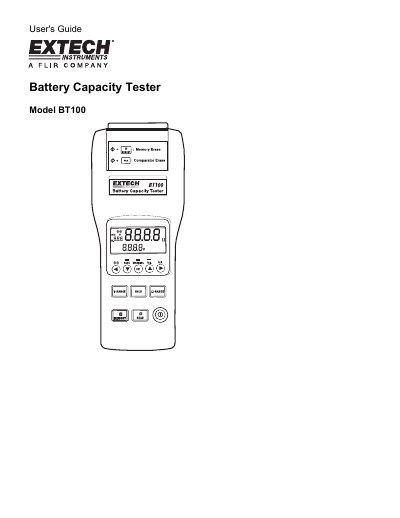

Extech BT100 Battery Capacity Tester User's Guide
The Extech BT100 is a battery capacity tester designed to measure the internal resistance and output voltage of lead storage cell, nickel-cadmium, lithium-ion, and nickel-metal hydride batteries. It utilizes an AC four-terminal method with a 1kHz test current to eliminate lead resistances and contact resistances for accurate results.
The device features a dual display that simultaneously indicates internal resistance and voltage, along with a comparator function capable of storing up to 99 sets of values. Users can perform manual data logging for up to 999 sets or continuous interval datalogging for up to 9600 points. The unit includes an RS232 PC port compatible with Windows software for data analysis.
EXTECH BT100 specifications
| Measuring method | AC four-terminal method |
|---|---|
| Test current frequency | 1kHz + 10% |
| Sampling rate | 1 set/second |
| Operating environment temperature | 32 to 104°F (0° to 40°C) |
| Power source | Six AA size 1.5V batteries |
All EXTECH BT100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What types of batteries can the BT100 measure?
The tester is designed for measuring lead storage cell, nickel-cadmium battery, lithium-ion battery and nickel-metal hydride battery.
How many comparator settings can be stored?
The device allows for 99 sets of resistance and voltage values to be stored for battery deterioration characterization.
Can the BT100 test batteries while they are in service?
Yes, it allows on-line testing without disconnecting the battery.
How long does the battery life last?
The battery life lasts 7 hours.
