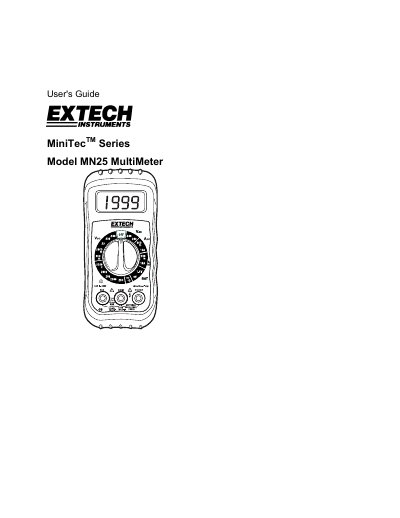

Extech MN25 MultiMeter User's Guide
The document serves as a comprehensive user's guide for the Extech MiniTec Series Model MN25 Multimeter. It covers essential topics including product description, detailed operation procedures for various measurements such as voltage, current, resistance, and continuity, along with specific safety precautions to prevent damage or injury.
Key features of the instrument include a 3 1/2 digit LCD display capable of measuring AC/DC Voltage, Current, Resistance, Capacitance, Frequency, Duty Cycle, Temperature, Diode Test, and Continuity. The guide also details warranty information and technical specifications.
EXTECH MN25 specifications
| DC Voltage Range | 600V DC maximum |
|---|---|
| AC Voltage Range | 600V AC maximum |
| DC Current Range | 10A DC maximum |
| Resistance Range | 200k Ohms maximum |
| Battery Type | 9 Volt Battery |
| Operating Temperature | 5ºC to 40ºC |
All EXTECH MN25 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the warranty period for this multimeter?
Extech warrants the instrument to be free of defects in parts and workmanship for one year from date of shipment.
How long can I measure current on the 10A scale?
Do not make current measurements on the 10A scale for longer than 30 seconds, as exceeding this time may cause damage.
What functions does the MiniTec Digital MultiMeter include?
It includes 8 to 11 functions such as Relative zero, Data Hold, Range Hold, and measurements for AC/DC Voltage, Current, Resistance, Capacitance, Frequency, and Temperature.
From: EXTECH MiniTec Digital MultiMeter MN25/MN26T Datasheet
Is there fuse protection for high current measurements?
Yes, the device includes 10A fuse protection.
From: EXTECH MiniTec Digital MultiMeter MN25/MN26T Datasheet
