Start here

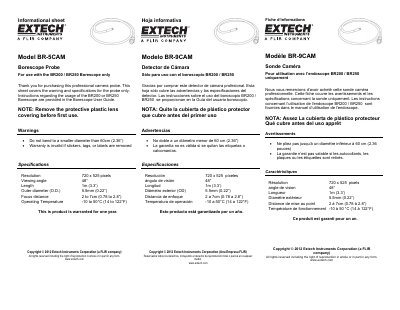

Extech BR-9CAM Borescope Probe Informational Sheet
This document is a multi-language informational sheet (English, Spanish, French, German, Italian, Portuguese) for the Extech BR-9CAM Borescope Probe. It serves as a quick reference guide containing specific warnings and technical data for the camera probe component.
The sheet specifies that this probe is designed for use with compatible borescopes such as the BR200/BR250 or HDV600 models (depending on the language version). Key specifications include a resolution of 720 x 525 pixels, a viewing angle of 48 degrees, and a length of 1 meter. Important usage warnings advise against bending the probe to a diameter smaller than 60cm and note that the warranty becomes invalid if protective stickers or labels are removed.
EXTECH BR-9CAM specifications
| Resolution | 720 x 525 pixels |
|---|---|
| Viewing angle | 48° |
| Length | 1m (3.3) |
| Outer diameter (O.D.) | 5.5mm (0.22?) |
All EXTECH BR-9CAM documents by type
Questions answered in these manuals
What are the warnings for using the Extech BR-9CAM probe?
Do not bend the probe to a diameter smaller than 60cm (2.36 inches), and do not remove stickers, tags, or labels as this invalidates the warranty.
Which borescope models is the BR-9CAM compatible with?
The probe is for use with the BR200 / BR250 Borescope (or HDV600 in some language versions).
What is the minimum bend radius for the probe?
Do not bend the probe to a smaller diameter than 60cm (2.36 inches).
What is the warranty period for this product?
This product is warranted for one year.
