Start here

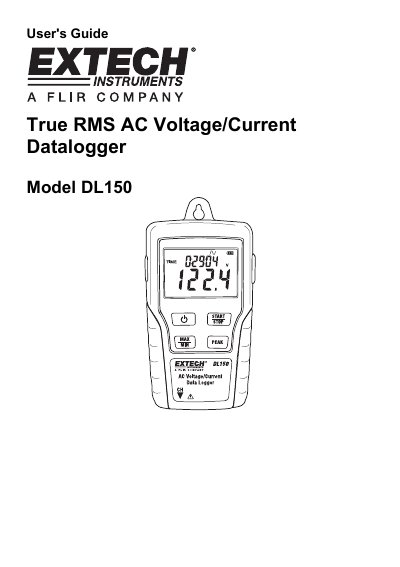

Extech DL150 True RMS AC Voltage/Current Datalogger User's Guide
The Extech Model DL150 is a datalogger designed to monitor and log voltage or current data over long periods. It features an LCD display that provides real-time data, maximum/minimum values, and time information. The device allows users to capture waveforms when measurements exceed a set level and transfer recorded data to a PC for evaluation.
The manual details safety precautions, button functions, and step-by-step operation instructions. Users can select between normal record mode or capture record mode, control recording via the START/STOP button, and manage battery replacement. The guide also includes system requirements for the accompanying software.
EXTECH DL150 specifications
| Channels | Single channel, TRMS AC Voltage or Current |
|---|---|
| Sample rate | 1s to 24h selectable |
| Transient capture | >0.244mS |
| Power supply (Battery) | 4 AAA Batteries and 1 CR 3V memory button battery |
| Battery life | 5 days (approximately) |
| Operating Temperature | -20 to 50°C, 32 to 122°F |
| Current Clamp Jaw opening | 12.7mm (0.5") |
Source: Extech DL150 True RMS AC Voltage/Current Datalogger User's Guide
All EXTECH DL150 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How do I start recording data?
Press and hold the START/STOP button for four seconds until the 'REC' icon appears on the display.
From: Extech DL150 True RMS AC Voltage/Current Datalogger User's Guide
What happens when the memory is full?
In continuous recording mode, data overwrites the oldest data; in record until full mode, recording stops.
From: Extech DL150 True RMS AC Voltage/Current Datalogger User's Guide
What is the maximum AC voltage this datalogger can measure?
The instrument can measure True RMS AC Voltage up to 600V.
From: EXTECH DL150 True RMS AC Voltage/Current Datalogger Product Datasheet
What is the maximum current rating for this device?
The datalogger is rated to measure True RMS Current up to 200A.
From: EXTECH DL150 True RMS AC Voltage/Current Datalogger Product Datasheet
