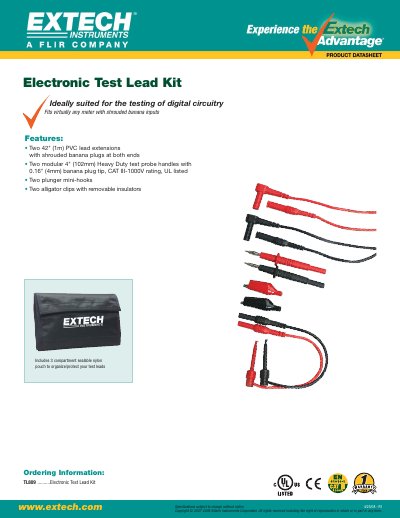

Extech TL809 Electronic Test Lead Kit User Guide
User Manual 1 pages · 252 KB · EN
The Extech TL809 Electronic Test Lead Kit is designed for testing digital circuitry and is compatible with virtually any meter featuring shrouded banana inputs. The kit includes two 42-inch (1m) PVC lead extensions with shrouded banana plugs at both ends, ensuring secure connections.
Read onlineEXTECH TL809 specifications
| Leads Category | CAT III 1000V |
|---|---|
| Leads Current Rating | 10A |
| Test Probes Category | CAT III 1000V |
| Alligator Clips Voltage | 150V |
| Alligator Clips Current | 3A |
| Mini-grabbers Voltage | 150V |
| Mini-grabbers Current | 3A |
All EXTECH TL809 documents by type
Product Leaflet 1
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the Extech TL809 Test Lead Kit designed for?
This kit is designed for use with all popular multimeters that have standard safety shrouded input jacks.
What are the voltage and current ratings for the test probes?
The test probes are rated for CAT III 1000V and 10A.
What is the Extech TL809 kit suitable for?
It is ideally suited for the testing of digital circuitry.
Which meters are compatible with this kit?
It fits virtually any meter with shrouded banana inputs.
