Key facts
- Brand
- EXTECH
- Model
- EX810
- Category
- Other Electronics
- Industry
- Industrial
- Documents
- 2
- Languages
- ZH · EN
- Last added
- 2026-10-14
Start here

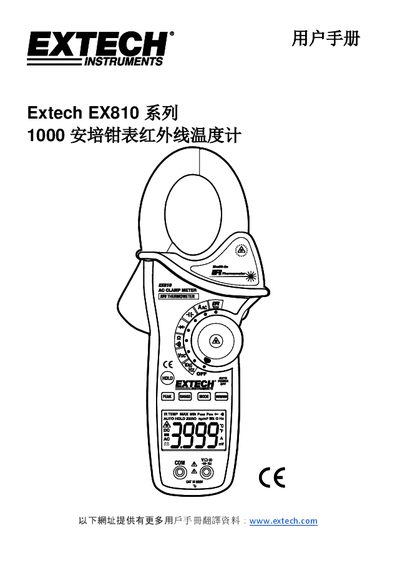

Extech EX810 Series Clamp Meter Infrared Thermometer User Manual
This document is the user manual for the Extech EX810 series, a multi-function clamp meter and infrared thermometer. The device is designed to measure AC/DC voltage, AC current, resistance, capacitance, frequency, diode testing, continuity, and non-contact infrared temperature. It includes features such as data hold, min/max recording, and peak hold. This manual is written in Chinese.
Read onlineExtech EX810 specifications
| Max Input Current | 1000A |
|---|---|
| Max Input Voltage | 600V |
| Max Input Resistance | 250V DC/AC |
| Temperature Units | oF and oC |
| Battery Type | 9V |
Source: Extech EX810 Series Clamp Meter Infrared Thermometer User Manual
All Extech EX810 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum current measurement range?
The maximum input for AC current is 1000A.
From: Extech EX810 Series Clamp Meter Infrared Thermometer User Manual
What battery type is required?
The device requires a 9V battery.
From: Extech EX810 Series Clamp Meter Infrared Thermometer User Manual
What is the maximum AC current measurement range?
The maximum AC current input range is 1000A.
From: Extech EX810 1000 Amp Clamp Meter with IR Thermometer User's Guide
What is the maximum voltage for resistance and continuity tests?
The maximum input for resistance, capacitance, frequency, and diode tests is 250V DC/AC.
From: Extech EX810 1000 Amp Clamp Meter with IR Thermometer User's Guide
