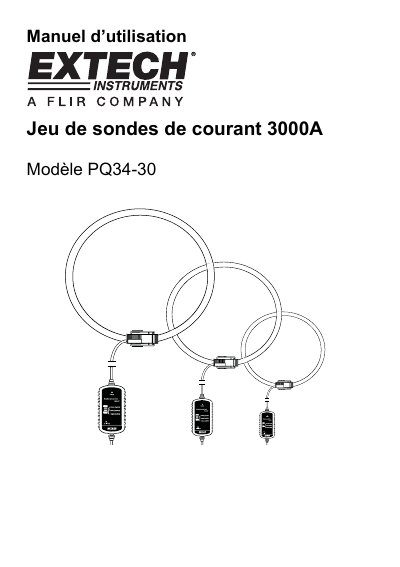

Extech PQ34-30 3000A Current Probe Set User Manual
This manual provides instructions for the Extech PQ34-30, a set of three flexible current probes designed for use with Extech PQ3450 or PQ3470 power analyzers. The document outlines safety precautions, including warnings about high voltage and proper usage in non-hazardous environments, and details the setup process for connecting the probes to the analyzer. This manual is written in French.
Read onlineEXTECH PQ34-30 specifications
| Measurement Ranges | 30 A, 300 A and 3000 A |
|---|---|
| Output Sensitivity (30A) | 100 mV/A |
| Output Sensitivity (300A) | 10 mV/A |
| Output Sensitivity (3000A) | 1 mV/A |
| Frequency Range | 45 to 400 Hz |
| Maximum Conductor Size | Round: 177 mm, Oval: 216 mm |
| Phase Error | < +1.5° |
| Operating Temperature | 0 to 50 °C |
All EXTECH PQ34-30 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which power analyzers are compatible with this probe set?
The probes are designed to be used with Extech PQ3450 or PQ3470 power analyzers.
What is the maximum current rating of the probes?
The probes have selectable ranges up to 3000 A.
Which power analyzers are compatible with this probe set?
The probes are designed to be used with the Extech PQ3450 or PQ3470 Power Analyzers.
What are the safety precautions for high voltage?
Use great care when making measurements if voltages are greater than 25VAC rms or 35VDC, as these are considered a shock hazard.
