Key facts
- Brand
- EXTECH
- Model
- MA1500
- Category
- multimeter
- Documents
- 3
- Languages
- ES · EN
- Last added
- 2023-10-18
Start here

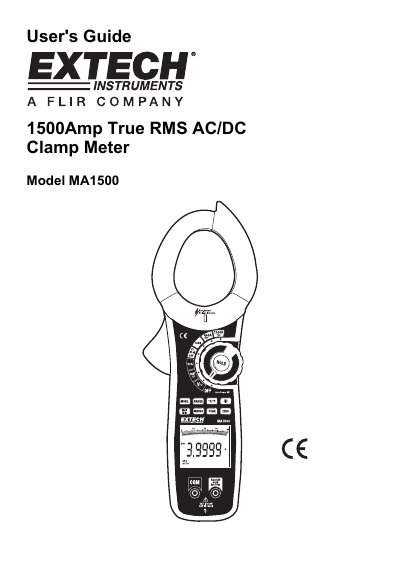

Extech MA1500 True RMS Clamp Meter User Manual
This document is the user manual for the Extech MA1500 True RMS clamp meter. It provides instructions on using the device's features, including non-contact voltage detection, AC/DC current measurement, and various electrical tests like continuity and diode testing. The manual also details safety precautions and the specific functions available on the LCD display. This manual is written in Spanish.
Read onlineEXTECH MA1500 specifications
| Max AC/DC Current | 1500A |
|---|---|
| Max AC/DC Voltage | 1000V |
| Resistance/Continuity Max Voltage | 250V |
| Temperature Type K | 30V DC, 24V AC |
All EXTECH MA1500 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum current the MA1500 can measure?
The maximum current measurement is 1500A for both AC and DC.
How do I use the non-contact voltage detector?
Place the tip of the detector on the conductor; if AC voltage is present, the red VSC light will turn on.
What safety precautions should be taken when measuring voltage?
Do not measure current on a circuit whose voltage exceeds 600V. Also, do not apply voltage to the meter when the resistance function is selected.
How can I improve resolution for low current readings?
If the value is less than 400A, rotate the function switch to the 400A AC/DC position.
What is the maximum jaw size of the MA1500 clamp meter?
The meter has a 2.0-inch jaw size, which is 65.2 mm.
What is the maximum temperature range the MA1500 can measure?
The meter can measure temperatures from -148 to 1832 F.
