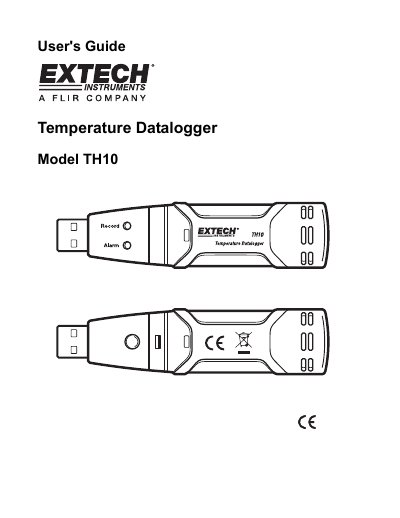

EXTECH Dual Input J/K Type Thermometer Model TM300 user manual
The Extech TH10 is a portable temperature datalogger designed to measure and store up to 32,000 readings. It features selectable sampling rates ranging from 2 seconds to 24 hours, user-programmable high/low alarm thresholds, and a long-life lithium battery that can typically last one year.
The device connects to a PC via USB for setup and data transfer using supplied software. Users can configure logging parameters such as logger name, sample points, and LED flash cycles through the software interface. Once logged, data can be downloaded, graphed, printed, or exported in various formats including Excel, Text, and Bitmap.
EXTECH TM300 specifications
| Memory Capacity | 32,000 readings |
|---|---|
| Temperature Range | -40 to 70°C (-40 to 158°F) |
| Sampling Interval | 2 seconds up to 24 hours |
| Battery Type | 3.6V Lithium (1/2 AA) |
| Dimensions | 101x25x23mm |
Source: EXTECH Dual Input J/K Type Thermometer Model TM300 user manual
All EXTECH TM300 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- EXTECH Dual Input J/K Type Thermometer Model TM300 user manual 11 p
- EXTECH TM300............Type K/J Dual Input Thermometer TM300-NIST ..Type K/J Dual Input Thermometer w/ Calibration Traceable to NIST TP870 ............Replacement Type K Bead Wire Temperature Probe
- Extech TM300 Dual Input J/K Type Thermometer User's Guide 6 p
Questions answered in these manuals
How many temperature readings can the TH10 store?
The datalogger measures and stores up to 32,000 temperature readings.
From: EXTECH Dual Input J/K Type Thermometer Model TM300 user manual
What is the typical battery life of the TH10?
The long-life lithium battery can typically allow logging for one year.
From: EXTECH Dual Input J/K Type Thermometer Model TM300 user manual
What thermocouple types does the TM300 support?
The meter accepts one or two K or J-type thermocouples with spade lugs.
From: Extech TM300 Dual Input J/K Type Thermometer User's Guide
How do I enter the Setup mode?
Press and hold the SET button for 3 seconds to enter or exit the Setup mode.
From: Extech TM300 Dual Input J/K Type Thermometer User's Guide
What is the basic accuracy of the thermometer?
The basic accuracy is ±(0.15% rdg + 1.8°F/1°C).
From: EXTECH TM300 Type K/J Dual Input Thermometer Product Datasheet
Does the TM300 include batteries and a case?
Yes, it comes complete with two general purpose Type K bead wire temperature probes, three AAA batteries, and a pouch case.
From: EXTECH TM300 Type K/J Dual Input Thermometer Product Datasheet
