Key facts
- Brand
- EXTECH
- Model
- 60120B
- Category
- Other Electronics
- Documents
- 3
- Languages
- EN
- Last added
- 2012-08-01
Start here

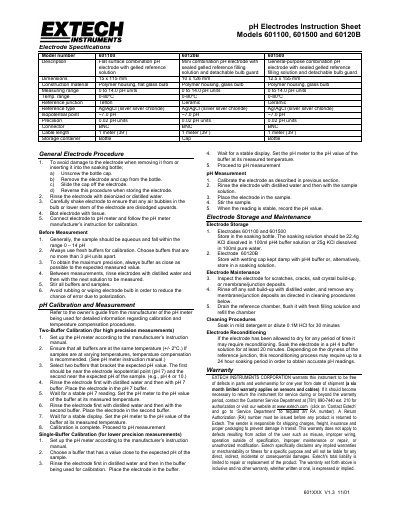

Extech Models 601100/601500/60120B pH Electrodes Instruction Sheet
This document serves as an instruction sheet for three specific Extech pH electrode models: the flat surface combination model (601100), the mini combination model with detachable bulb guard (601500), and the general-purpose combination model (60120B). It provides detailed specifications including dimensions, measuring range of 0 to 14.0 pH units, and temperature ranges from 0-80°C.
Read onlineEXTECH 60120B specifications
| pH Range | 0 to 14 pH |
|---|---|
| ORP Range | -1999mV to 1999mV |
| Temperature Range | 32 to 149°F (0 to 65°C) |
| Memory Capacity | 20M data records using 2G SD card |
| Dimensions | 7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm) |
| Weight | 16oz (455g) |
All EXTECH 60120B documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What format is the data stored on the SD card?
The device records data on an SD card in Excel®format for easy transfer to a PC.
What is the user programmable sampling rate range?
The sampling rate can be programmed from 1 second to 8hrs:59min:59sec.
What is the recommended storage solution for electrodes 601100 and 601500?
Store in a soaking bottle with 22.4g KCl dissolved in 100ml pH4 buffer solution or 25g KCl dissolved in 100ml pure water.
From: Extech Models 601100/601500/60120B pH Electrodes Instruction Sheet
How long does the warranty last for these instruments?
Extech warrants the instrument to be free of defects for one year from date of shipment, with a six-month limited warranty on sensors and cables.
From: Extech Models 601100/601500/60120B pH Electrodes Instruction Sheet
What is the measuring range for these pH electrodes?
The electrodes measure from 0 to 14.0 pH units.
From: Extech 601100/601500/60120B pH Electrode Specifications
What is the temperature range for these electrodes?
These electrodes operate within a temperature range of 0-80°C.
From: Extech 601100/601500/60120B pH Electrode Specifications
