Key facts
- Brand
- EXTECH
- Model
- HDV-5CAM-3R
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-01
Start here

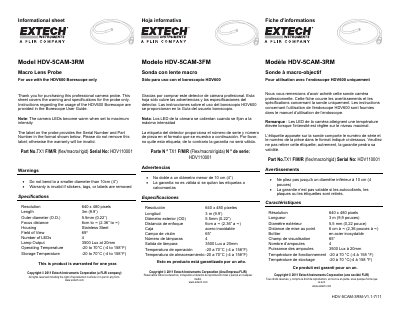

EXTECH HDV-5CAM-3RM/3FM USER GUIDE
The document is an informational sheet for the Extech HDV-5CAM-3RM Macro Lens Probe. It specifies that this accessory is intended for use exclusively with the HDV600 Borescope and directs users to the separate Borescope User Guide for operating instructions.
The leaflet details key technical specifications, including a resolution of 640 x 480 pixels, a length of 3 meters, and an outer diameter of 5.5mm. It also lists environmental limits for operation and storage, along with warranty information.
EXTECH HDV-5CAM-3R specifications
| Resolution | 640 x 480 pixels |
|---|---|
| Length | 3m (9.9) |
| Outer diameter | 5.5mm (0.22") |
| Focus distance | 6cm to 3m |
| Housing material | Stainless Steel |
| Field of View | 65° |
| Number of LEDs | 4 |
| Lamp Output | 3500 Lux at 20mm |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
All EXTECH HDV-5CAM-3R documents by type
Questions answered in these manuals
What borescope is this probe compatible with?
This probe is for use with the HDV600 Borescope only.
What happens if I remove the label from the probe?
The warranty will be invalid if stickers, tags, or labels are removed.
What is the compatible borescope for this probe?
This probe is designed for use with the HDV600 Borescope only.
From: Extech HDV-5CAM-3R Long Depth of Field Rigid Probe Product Information Sheet
What happens if I remove the label from the probe?
The warranty will become invalid if stickers, tags, or labels are removed.
From: Extech HDV-5CAM-3R Long Depth of Field Rigid Probe Product Information Sheet
