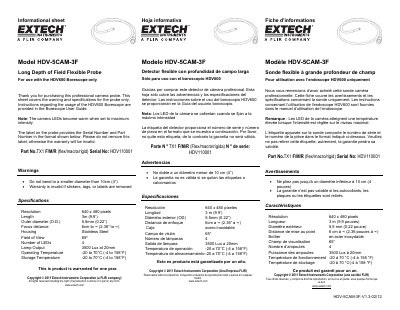

Extech HDV-5CAM-3F Flexible Probe Informational Sheet
This document is an informational sheet for the Extech HDV-5CAM-3F, a long depth of field flexible camera probe designed exclusively for use with the HDV600 borescope. It provides technical specifications, operational warnings, and warranty details for the probe component only.
The probe features a stainless steel housing, a resolution of 640 x 480 pixels, and a length of 3 meters. Key specifications include a 5.5mm outer diameter, a field of view of 65 degrees, and an operating temperature range of -20 to 70°C. The document notes that the camera LEDs generate heat at maximum intensity and warns against bending the probe to a diameter smaller than 10cm.
EXTECH HDV-5CAM-3F specifications
| Resolution | 640 x 480 pixels |
|---|---|
| Length | 3m (9.9') |
| Outer Diameter | 5.5mm (0.22") |
| Focus Distance | 6cm to ∞ |
| Housing Material | Stainless Steel |
| Field of View | 65º |
| Number of LEDs | 4 |
| Lamp Output | 3500 Lux at 20mm |
| Operating Temperature | -20 to 70°C |
| Storage Temperature | -20 to 70°C |
| Warranty Period | One year |
Source: Extech HDV-5CAM-3F Flexible Probe Informational Sheet
All EXTECH HDV-5CAM-3F documents by type
Questions answered in these manuals
Is the HDV-5CAM-3F compatible with other borescopes?
No, this probe is compatible only with the HDV600 borescope.
What is the minimum bending radius for the probe?
Do not bend the probe to a diameter smaller than 10cm (4 inches).
What is the minimum bend radius for this probe?
Do not bend the probe to a smaller diameter than 10cm (4 inches).
From: Extech HDV-5CAM-3FM Macro Lens Flexible Probe Product Information Sheet
What is the warranty period for this product?
This product is warranted for one year.
From: Extech HDV-5CAM-3FM Macro Lens Flexible Probe Product Information Sheet
