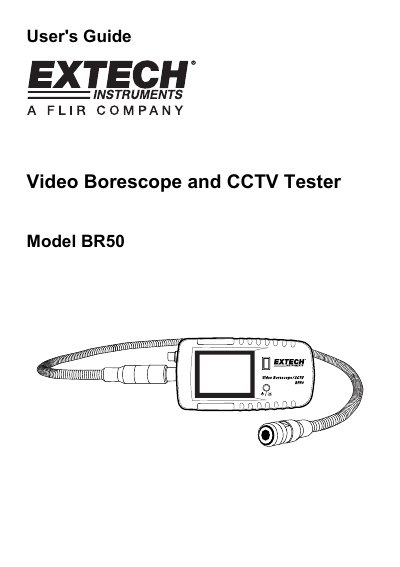

Extech BR50 Video Borescope and CCTV Tester User's Guide
The Extech BR50 is a remote inspection device designed for use as a video borescope and a CCTV camera alignment tool. It features real-time video inspection with built-in rechargeable lithium battery support, compatible with both AC charging and USB power sources. The instrument supports NTSC and PAL formats and includes bright LEDs to illuminate the area being inspected.
The manual details how to operate the meter for borescope inspections and CCTV signal alignment. Key operational features include adjustable light source levels (6 levels), automatic signal switching between borescope and AV input modes, and a system reset function for disturbances. The device is suitable for applications such as HVAC inspection, automotive checks, cable routing, boat, and aircraft inspection.
EXTECH BR50 specifications
| Sensor pixels | 300,000 |
|---|---|
| Maximum frame rate | 30 FPS |
| Color resolution | 24 Bit |
| Focusing method | Fixed focus |
| Gooseneck length | 1m (39") |
| LCD Display resolution | 480 (W) X 234 (H) pixels |
| Battery capacity | 1800mAH lithium battery |
Source: Extech BR50 Video Borescope and CCTV Tester User's Guide
All EXTECH BR50 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the typical applications for the Extech BR50?
Typical applications include HVAC inspection, automotive inspection, cable routing, boat, and aircraft inspection.
From: Extech BR50 Video Borescope and CCTV Tester User's Guide
Can I replace the battery myself?
No, the meter contains a rechargeable battery which is not user replaceable.
From: Extech BR50 Video Borescope and CCTV Tester User's Guide
What is the diameter of the BR50 camera head?
The camera head has a diameter of 17mm.
Does the BR50 support multiple camera standards?
Yes, it automatically detects both NTSC and PAL cameras.
