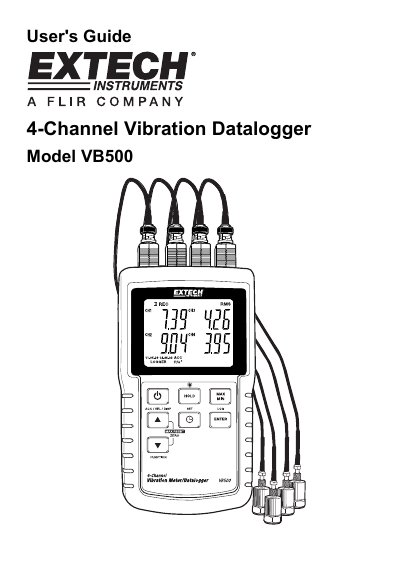

Extech VB500 4-Channel Vibration Datalogger User's Guide
The Extech VB500 is a 4-channel vibration datalogger designed to display and store vibration readings of acceleration, velocity, and displacement. It supports multiple measurement units including meters/s2, ft/s2, g, mm/s, cm/s, in/s, mm, and inch. The device allows logged data to be stored on an SD card for transfer to a PC.
Read onlineEXTECH VB500 specifications
| Channels | four (4) |
|---|---|
| Measurement Types | Acceleration, Velocity and Displacement |
| Supported Units | meters/s2, ft/s2, g, mm/s, cm/s, in/s, mm and inch |
| Power Source | eight (8) 1.5V 'AA' batteries or by AC adaptor |
| Sampling Rates | 0, 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800 or 3600 seconds |
| Auto Power OFF | 10 minutes of inactivity |
Source: Extech VB500 4-Channel Vibration Datalogger User's Guide
All EXTECH VB500 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I power on the VB500?
Power the meter by pressing and holding the power button for 3 seconds.
From: Extech VB500 4-Channel Vibration Datalogger User's Guide
How do I change the unit of measure?
Press and hold the ACC/VEL/DISP (up arrow) button until the desired unit appears, then release.
From: Extech VB500 4-Channel Vibration Datalogger User's Guide
What is the frequency range of the VB500?
The device has a wide frequency range of 10Hz to 1kHz.
From: EXTECH VB500 4-Channel Vibration Meter/Datalogger Product Datasheet
What is the basic accuracy of the meter?
The basic accuracy is +(5% + 2 digits).
From: EXTECH VB500 4-Channel Vibration Meter/Datalogger Product Datasheet
