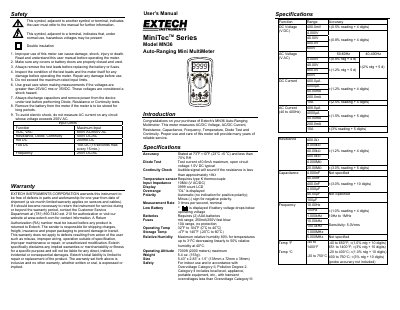

Extech MN36 Auto-Ranging Mini Multimeter User Manual
This document is the user manual for the Extech MN36 Auto-Ranging Mini Multimeter. It provides essential safety warnings, detailed technical specifications for various measurement functions, and step-by-step operating instructions for voltage, current, resistance, capacitance, frequency, temperature, continuity, and diode testing.
Read onlineEXTECH MN36 specifications
| Display | 3999 count LCD |
|---|---|
| Batteries | (2) AAA batteries |
| Weight | 5.4 oz. (153g) |
| Size | 5.43" x 2.83" x 1.5" |
| Operating Temp | 32°F to 104°F (0°C to 40°C) |
| DC Voltage Accuracy | +(0.5% reading + 4 digits) |
| AC Voltage Frequency | 50-60Hz |
| Temperature Range | -40 to 650°F; -20 to 750°C |
Source: Extech MN36 Auto-Ranging Mini Multimeter User Manual
All EXTECH MN36 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What batteries does the Extech MN36 require?
The meter requires two AAA batteries.
How long can the meter be used on the 10A current scale?
Do not make high current measurements on the 10A scale for longer than 15 seconds.
What is the difference between the MN35 and MN36 models?
The MN35 is a manual ranging model, while the MN36 is an autoranging model that supports AC Current, Capacitance, and Frequency measurements.
What is the maximum DC voltage measurement capability?
The multimeters can measure AC and DC Voltage to 600V.
