Start here

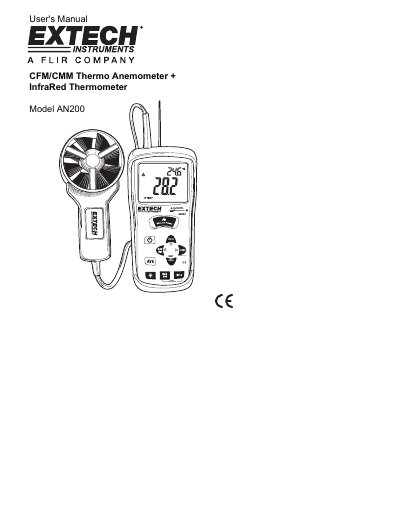

Extech AN200 CFM/CMM Thermo Anemometer User's Manual
The Extech AN200 is a combined CFM/CMM Thermo Anemometer and InfraRed Thermometer. It measures air velocity, air flow (volume), air temperature using a probe, and surface temperature via its infrared feature which includes a laser pointer for targeting.
The instrument features a large backlit LCD with primary and secondary displays to show readings and status indicators. It allows users to store 16 area setting dimensions for easy recall and supports various measurement modes including averaging up to 20 points.
EXTECH AN200 specifications
| Air Velocity Range | 0.40 - 30.00 m/s |
|---|---|
| Air Flow Range (CMM) | 0-999999 m³/min |
| Air Temperature Range | -10 - 60°C |
| Battery Type | One 9 volt (NEDA 1604) |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
Source: Extech AN200 CFM/CMM Thermo Anemometer User's Manual
All EXTECH AN200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many area settings can be stored?
The meter can store 16 area setting dimensions for easy recall.
What is the approximate battery life with backlight and laser on?
Battery life is reduced to approximately 2 to 3 hours if the Backlight and Laser are used continuously.
What is the distance-to-spot ratio for the AN200 IR thermometer?
The AN200 has an 8:1 distance-to-spot ratio.
From: EXTECH AN100/AN200 CFM/CMM Thermo-Anemometer Datasheet
What applications are supported by the EXTECH AN100/AN200?
Applications include HVAC installation, fume hood testing, ventilation system analysis, and environmental wind testing.
From: EXTECH AN100/AN200 CFM/CMM Thermo-Anemometer Datasheet
