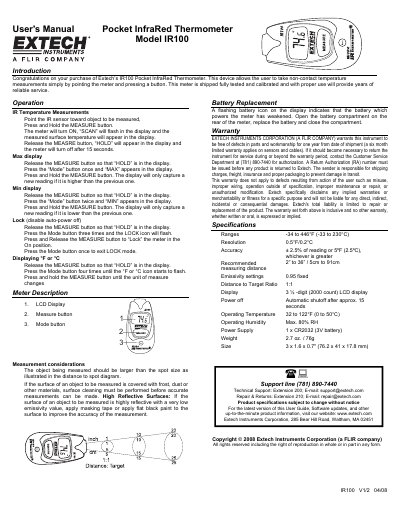

Extech IR100 Pocket InfraRed Thermometer User Manual
This user manual explains how to operate the Extech IR100 pocket infrared thermometer for non-contact temperature measurements. It covers basic functions like measuring, locking, and switching between °F and °C. The device features a 3½-digit LCD display and a CR2032 battery. It includes safety and measurement considerations, such as surface reflectivity and emissivity, and instructions for battery replacement and warranty support.
Read onlineEXTECH IR100 specifications
| Temperature Range | -34 to 446°F (-33 to 230°C) |
|---|---|
| Resolution | 0.5°F/0.2°C |
| Accuracy | ± 2.5% of reading or 5ºF (2.5ºC) |
| Recommended Measuring Distance | 2" to 36" / 5cm to 91cm |
| Emissivity Setting | 0.95 fixed |
| Distance to Target Ratio | 1:1 |
| Display Type | 3 ½ -digit (2000 count) LCD display |
| Power Supply | 1 x CR2032 (3V battery) |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Weight | 2.7 oz. / 76g |
Source: Extech IR100 Pocket InfraRed Thermometer User's Manual
All EXTECH IR100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the battery type?
The device uses a single CR2032 3V battery.
What is the maximum measuring distance for the IR100?
The recommended measuring distance is 2” to 36”.
How do I take a temperature measurement?
Point the IR sensor toward the object to be measured, press and hold the MEASURE button until the meter turns on and 'SCAN' flashes.
From: Extech IR100 Pocket InfraRed Thermometer User's Manual
How do I lock the meter in the On position?
Press the Mode button three times until the LOCK icon flashes, then press and release the MEASURE button.
From: Extech IR100 Pocket InfraRed Thermometer User's Manual
What is the temperature range of the EXTECH IR100 Mini IR Thermometer?
The thermometer measures temperatures from -34 to 446°F (-33 to 230°C).
What battery is required to operate the EXTECH IR100?
The device comes complete with a CR2032 3V battery.
