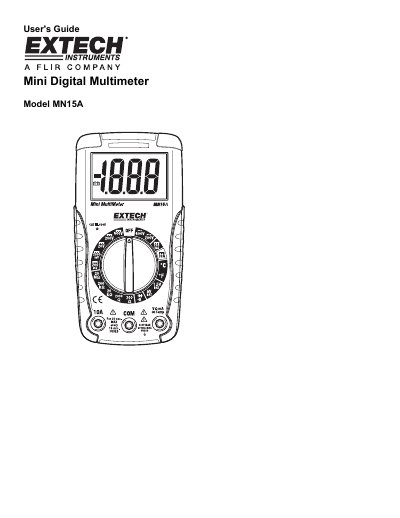

Extech MN15A Mini Digital Multimeter User Guide
The Extech MN15A is a mini digital multimeter designed to measure AC/DC voltage, AC/DC current, resistance, diode continuity, and Type K thermocouple temperature. The device features an LCD display with symbols for various functions including continuity (beep), diode testing, and low battery indication.
The manual details the controls and jacks, including a 10 ampere test lead jack and specific jacks for voltage, milliamp, resistance/continuity, diode, and temperature. It provides step-by-step instructions for performing measurements safely, along with maintenance guidelines such as battery replacement and fuse installation.
EXTECH MN15A specifications
| Max Input Limit (Voltage) | 600V AC or 600V DC |
|---|---|
| Resistance Range | 200Ω to 20MΩ |
| Temperature Range (Celsius) | -20°C to 750°C |
| Temperature Range (Fahrenheit) | -4°F to 1400°F |
All EXTECH MN15A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum voltage input limit for this multimeter?
The maximum input limit is 600V AC or 600V DC.
How long can the multimeter measure a current of 10A?
The device should not be used to measure 10A for more than 30 seconds.
What is the maximum input voltage limit?
The meter has been designed with a maximum input protection limit of 600VAC and VDC.
How long should I measure current at the 10 Amp setting?
Do not make current measurements at 10 Amps for longer than 30 seconds to avoid damage.
What is the difference between the MN15A and MN16A models?
The MN15A is a Manual Ranging model, while the MN16A is an Autoranging model that includes AC Current, Capacitance, Frequency, and Duty Cycle measurements.
Does the multimeter include a battery?
Yes, the MN15A includes a 9V battery and the MN16A includes two AAA batteries.
