Key facts
- Brand
- EXTECH
- Model
- MP510A
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-01
Start here

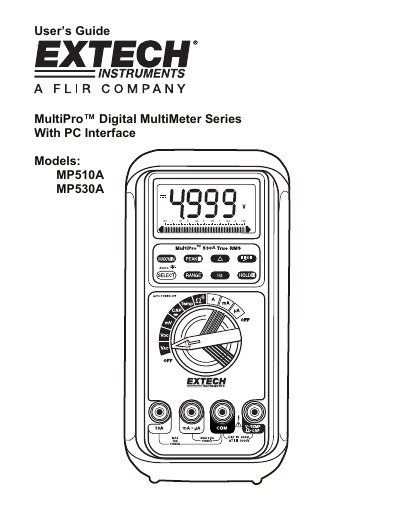

EXTECH MP510A/MP530A Digital Multimeter User's Guide
This manual provides instructions for the EXTECH MultiPro Digital Multimeter Series, specifically models MP510A and MP530A. It details safety warnings, panel illustrations, and operational procedures for various measurement functions including DC/AC voltage, current, resistance, capacitance, diode testing, and temperature (MP530 only).
Read onlineEXTECH MP510A specifications
| Display | 5000 count LCD display |
|---|---|
| NMRR | >60dB @ 50/60Hz |
| CMRR (DCV) | >120dB @ DC, 50/60Hz |
| Input Impedance | 10M Ω, 16pF nominal |
| DC Current Accuracy (50.00mA) | 3.3mV/mA |
| AC Voltage Frequency Range | 40Hz to 500Hz |
Source: EXTECH MP510A/MP530A Digital Multimeter User's Guide
All EXTECH MP510A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Which model supports temperature measurement?
The temperature function is available only on the Model MP530.
What is the maximum current rating for the 10A input jack?
The 10A input jack supports 10A continuous and 20A for 30 seconds.
What measurement functions does the MP510A include?
The instrument measures AC/DC voltage and current, resistance, frequency, capacitance, diode, and continuity.
What is the width of the MP510A?
The unit measures 8.42 inches wide.
