Key facts
- Brand
- EXTECH
- Model
- TR100
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-01
Start here

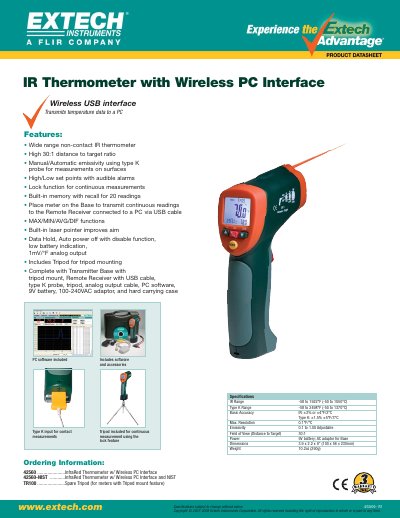

EXTECH 42560 ......................InfraRed Thermometer w/ Wireless PC Interface 42560-NIST ............InfraRed Thermometer w/ Wireless PC Interface NIST TR100 ......................Spare Tripo
The document describes the EXTECH 42560 Infrared Thermometer with Wireless PC Interface. Key features include a wide temperature range, manual or automatic emissivity adjustment using a Type K probe, high/low set points with audible alarms, and a built-in memory for recalling up to 20 readings.
The device supports wireless data transmission via a transmitter base connected to a Remote Receiver and USB cable. It includes MAX/MIN/AVG/DIF functions, a laser pointer, and various accessories such as a tripod, analog output cable, and PC software.
EXTECH TR100 specifications
| IR Range | ~58 to 1922°F (-50 to 1050°C) |
|---|---|
| Type K Range | ~58 to 2498°F (-50 to 1370°C) |
| IR Basic Accuracy | +2% or +4°F/2°C |
| Type K Basic Accuracy | +1.5% +5°F/9°C |
| Max Resolution | 0.1 to 1.00 Adjustable |
| Power Source | 9V battery; AC adaptor for Base |
| Dimensions | 3.9 x 2.2 x 9" (100 x 56 x 230mm) |
| Weight | 10.2 oz (290g) |
All EXTECH TR100 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What accessories are included with the EXTECH 42560?
The package includes a Transmitter Base, Remote Receiver with USB cable, Type K probe, tripod, analog output cable, PC software, QV battery, 100-240VAC adaptor, and a hard carrying case.
Can the thermometer measure temperatures using a contact probe?
Yes, it supports manual or automatic emissivity adjustments using a Type K probe for measurements on surfaces.
What is the maximum extended height of the tripod?
The maximum extended height is 7.5 inches (190mm).
What is the minimum height when the legs are retracted?
The minimum height when legs are retracted is 4.3 inches (110mm).
