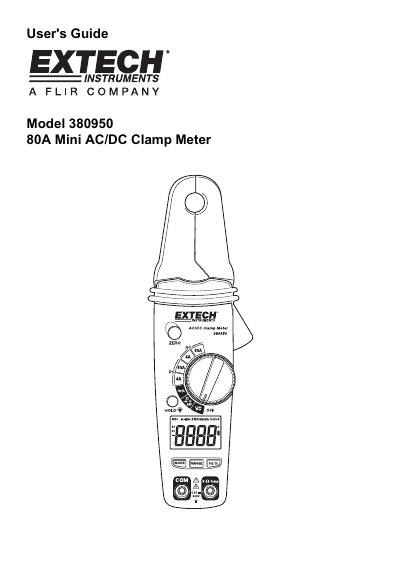

Extech Model 380950 80A Mini AC/DC Clamp Meter User's Guide
This document is the User's Guide for the Extech Model 380950 80A Mini AC/DC Clamp Meter. It introduces the meter's functions, including measurements for AC/DC current, voltage, resistance, frequency, capacitance, duty cycle, diode testing, and continuity checks. The guide emphasizes that the device is shipped fully tested and calibrated.
Read onlineEXTECH 80A specifications
| Max AC/DC Current | 80A |
|---|---|
| Max DC/AC Voltage | 600V |
| Max Resistance | 40.00MΩ |
| Max Capacitance | 100.0µF |
| Jaw Size | 12.7mm (0.5") |
| Display Count | 4000 |
| Operating Temperature | -10ºC to 50ºC |
| Weight | 200g |
Source: Extech Model 380950 80A Mini AC/DC Clamp Meter User's Guide
All EXTECH 80A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum current measurement range?
The meter can measure up to 80A of AC or DC current.
From: Extech Model 380950 80A Mini AC/DC Clamp Meter User's Guide
How do I turn on the backlight?
Press and hold the HOLD button for more than 2 seconds.
From: Extech Model 380950 80A Mini AC/DC Clamp Meter User's Guide
What is the maximum opening width of the meter's jaw?
The jaw opens to a width of 0.5 inches.
What is the resolution for AC and DC current measurements?
The meter provides a 1mA resolution for both ranges.
