Key facts
- Brand
- EXTECH
- Model
- EA10
- Industry
- Industrial
- Documents
- 5
- Languages
- EN
- Last added
- 2023-02-21
Start here

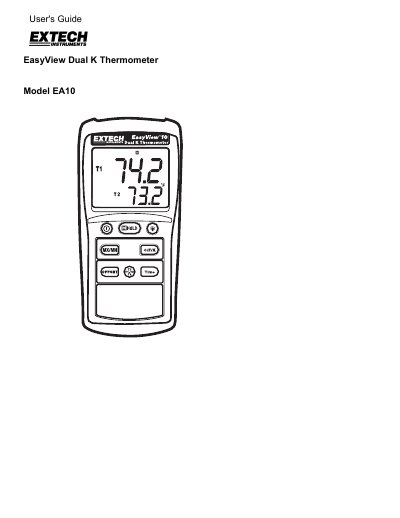

Extech EA10 EasyView Dual K Thermometer User's Guide
The Extech EA10 is a dual thermocouple thermometer featuring a multifunction LCD display with backlight. It accepts two Type K thermocouples with spade plugs and allows users to select between individual readings, combined values, or temperature differences (T1-T2). The device includes functions for data hold, min/max/average recording with an elapsed time timer, and offset mode.
Read onlineEXTECH EA10 specifications
| Measurement Range | -200 to 1999°F (-200 to 1360°C) |
|---|---|
| Resolution | 0.1°C/°F <200°, 1°C/°F >200° |
| Accuracy (@23 ± 5°C) | ±(0.3% reading + 2°F) @ -200°F to 1831.9°F |
| Power Supply | 6 AAA Batteries |
| Battery Life | Approximately 200 hours with carbon zinc batteries |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Dimensions | 5.91x2.8x1.4" (150x72x35mm) |
Source: Extech EA10 EasyView Dual K Thermometer User's Guide
All EXTECH EA10 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- EXTECH EA10 ....................EasyView Dual K Thermometer EA10-NIST ..........EA10 with Certificate of Calibration Traceable to NIST. EA15 ....................EasyView Dual Input 7 Thermo 1 p
- EXTECH EA10 ....................EasyView Dual K Thermometer EA10-NIST ..........EA10 with Certificate of Calibration Traceable to NIST. EA15 ....................EasyView Dual Input 7 Therm 1 p
Questions answered in these manuals
What type of thermocouples does the EA10 accept?
The meter accepts two Type K thermocouples with spade plugs (sub-miniature type with one spade wider than the other).
How do I select temperature units?
Press the C/F/K button to select the desired temperature unit of measure.
What is the temperature range of the datalogger?
The temperature range is -40 to 85°C (-40 to 185°F).
From: EXTECH EasyView Dual K Thermometer Model EA10 user manual
How do I know if the battery is low?
The LCD displays 'LO' when the lithium battery voltage nears the critical operating level.
From: EXTECH EasyView Dual K Thermometer Model EA10 user manual
What is the maximum number of readings the 42275 can store?
The 42275 can record up to 16,000 readings in total, with 8,000 readings allocated for each parameter.
What are the three start methods available for the datalogger?
The device supports Scheduled, immediate, and magnetic start methods.
