Key facts
- Brand
- EXTECH
- Model
- DM110
- Category
- multimeter
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-01
Start here

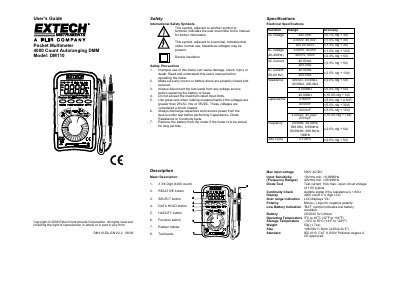

EXTECH 4000 Count Autoranging DMM Model: DM110 User Guide
This document is the User's Guide for the Extech DM110, a portable 4000 count autoranging digital multimeter. It provides essential safety precautions, including warnings about voltage limits and capacitor discharge, and details the standard IEC1010 CAT II 600V rating. The guide outlines the meter's capabilities for measuring DC/AC voltage, current, resistance, capacitance, frequency, and duty cycle.
Read onlineEXTECH DM110 specifications
| Display | 4000 count 3 ¾ digit LCD |
|---|---|
| Battery | CR2032 3V Lithium |
| Operating Temperature | 0oC to 40oC (32oF to 104oF) |
| Weight | 50g (1.7oz) |
| Safety Rating | Standard IEC1010 CAT II 600V |
Source: EXTECH 4000 Count Autoranging DMM Model: DM110 User Guide
All EXTECH DM110 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What battery does the Extech DM110 use?
The meter uses a CR2032 3V Lithium battery.
From: EXTECH 4000 Count Autoranging DMM Model: DM110 User Guide
How long does the display stay on before auto power off?
The display automatically turns off in 30 minutes to save power.
From: EXTECH 4000 Count Autoranging DMM Model: DM110 User Guide
What is the physical size of the DM110?
The dimensions are 4.25 x 2.2 x 0.5 inches.
What type of battery is included with the meter?
The package includes one CR 2032 button battery.
