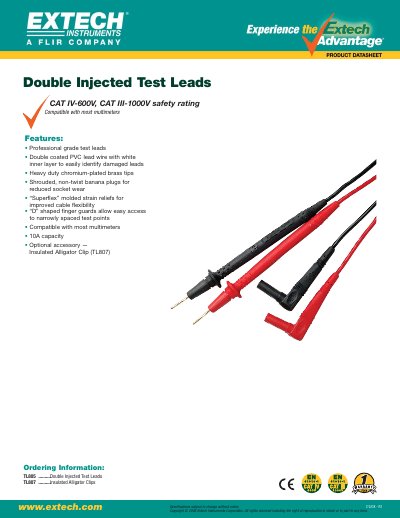

EXTECH TL805 Double Injected Test Leads Product Datasheet
This document is a product datasheet for the EXTECH TL805 Double Injected Test Leads. The leads feature professional-grade construction with double-coated PVC wire, heavy-duty chromium-plated brass tips, and shrouded non-twist banana plugs designed to reduce socket wear. They include "Superflex" molded strain reliefs for improved flexibility and "D" shaped finger guards for accessing narrowly spaced test points.
Read onlineEXTECH TL805 specifications
| Safety Rating | CAT IV-600V, CAT II-1000V |
|---|---|
| Capacity | 10A |
| Product Name | Double Injected Test Leads |
Source: EXTECH TL805 Double Injected Test Leads Product Datasheet
All EXTECH TL805 documents by type
Questions answered in these manuals
What is the safety rating of the TL805 test leads?
The test leads have a CAT IV-600V and CAT II-1000V safety rating.
From: EXTECH TL805 Double Injected Test Leads Product Datasheet
Are the TL805 test leads compatible with specific multimeters?
They are compatible with most multimeters.
From: EXTECH TL805 Double Injected Test Leads Product Datasheet
