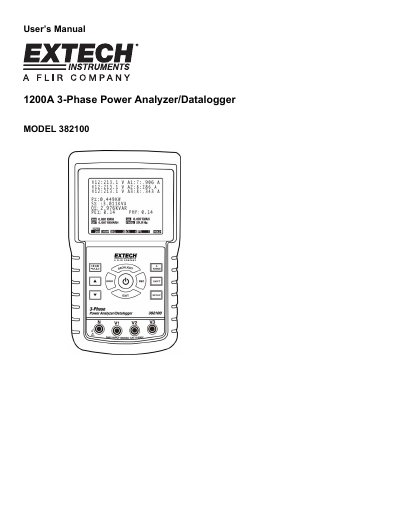

EXTECH 1200A 3-Phase Power Analyzer/Datalogger MODEL 382100 User Guide
The Extech 1200A is a 3-phase power analyzer and datalogger designed for measuring electrical parameters such as voltage, current, power, and power factor. It features a large backlit LCD display, high accuracy auto-ranging current clamps, and the ability to log up to 60,000 readings on a removable SD memory card. The device supports various measurement configurations including 1-phase and 3-phase systems with 2 or 4 wires.
Read onlineEXTECH 1200A specifications
| Measurement ranges | 20A, 200A and 1200A, switch selectable |
|---|---|
| Output sensitivity (20A range) | 10mV/A |
| Output sensitivity (200A range) | 1mV/A |
| Output sensitivity (1200A range) | 0.1mV/A |
| Output coupling | AC coupled |
| Accuracy | ±1% F.S. @ 23°C |
| Frequency range | 45 to 400 Hz |
| Minimum load | 100 K ohm |
| Enclosure material | UL 94-V0 rated |
| Safety | IEC 1010, Category III 600V |
| Power Supply | 8V+ 1V (supplied from meter) |
| Max. Jaw Open Size | 50 mm (2.0 inch) Dia. |
| Operating Temperature | 0°C to 50°C |
| Cable length | 4 meters (13.17 feet) |
| Weight | 490 g (1.08 LB) |
All EXTECH 1200A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What analyzers is this probe set compatible with?
The probes are designed to be used with the Extech PQ3450 or PQ3470 Power Analyzers.
What are the measurement ranges?
The set offers switch selectable ranges of 20A, 200A, and 1200A.
What is the warranty period for the Extech 1200A?
The instrument is warranted to be free of defects in parts and workmanship for three years from the date of shipment.
From: EXTECH 1200A 3-Phase Power Analyzer/Datalogger MODEL 382100 User Guide
How do I download data from the SD card to a PC?
Remove the SD card from the meter, plug it into a PC SD card slot or adapter, and open the data file in spreadsheet software.
From: EXTECH 1200A 3-Phase Power Analyzer/Datalogger MODEL 382100 User Guide
What is the maximum current measurement range?
The device supports a high accuracy autoranging current clamp from 0.2A to 1200A.
From: Extech 1200A 3-Phase Power Analyzer/Datalogger Specifications Sheet
What format is the saved data exported in?
Data is saved on an SD card in Microsoft Excel® format for easy transfer to a PC.
From: Extech 1200A 3-Phase Power Analyzer/Datalogger Specifications Sheet
