Start here

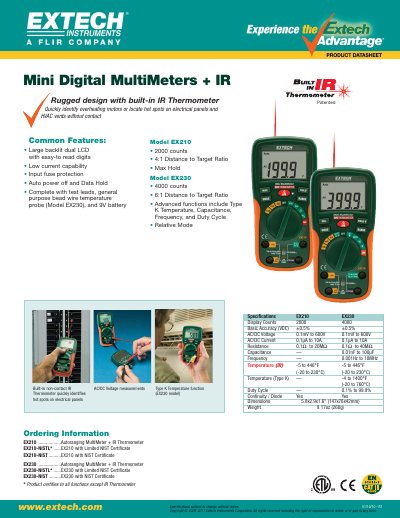

EXTECH EX210/EX230 Mini Digital Multimeter + IR Thermometer Product Datasheet
The document describes the EXTECH Mini Digital MultiMeters + IR models EX210 and EX230. These instruments combine a digital multimeter with a non-contact infrared thermometer to quickly identify overheating components or hot spots without physical contact.
Key features include large backlit dual LCD displays, low current measurement capability, input fuse protection, and auto power-off functions. The devices come complete with test leads, a general-purpose bead wire temperature probe (Model EX230), and a 9V battery.
EXTECH EX210 specifications
| Display Counts (EX210) | 2000 counts |
|---|---|
| Display Counts (EX230) | 4000 counts |
| AC/DC Voltage Range | 0.1mV to 600V |
| AC/DC Current Range (EX210) | 0.1pA to 104 |
| Resistance Range (EX210) | 0.192 to 20MQ |
| Capacitance Range | 0.01nF to 100yuF |
| Frequency Range | 0.001Hz to 10MHz |
| Temperature Range (Type K) | -20 to 760°C |
| Dimensions | 5.8x2.9x1.6" (147x76x42mm) |
| Weight | 9.170z (260g) |
Source: EXTECH EX210/EX230 Mini Digital Multimeter + IR Thermometer Product Datasheet
All EXTECH EX210 documents by type
Questions answered in these manuals
What is the distance to target ratio for the EX230?
The EX230 model has a 6:1 Distance to Target Ratio.
From: EXTECH EX210/EX230 Mini Digital Multimeter + IR Thermometer Product Datasheet
Does the multimeter include a temperature probe?
Yes, it is complete with a general purpose bead wire temperature probe (Model EX230).
From: EXTECH EX210/EX230 Mini Digital Multimeter + IR Thermometer Product Datasheet
What is the distance to target ratio of the built-in IR thermometer?
The device features a patented 4:1 Distance to Target Ratio.
From: Extech EX210 Mini Digital MultiMeter + IR Thermometer Product Datasheet
Does this multimeter include input fuse protection?
Yes, the EX210 includes input fuse protection for safety.
From: Extech EX210 Mini Digital MultiMeter + IR Thermometer Product Datasheet
