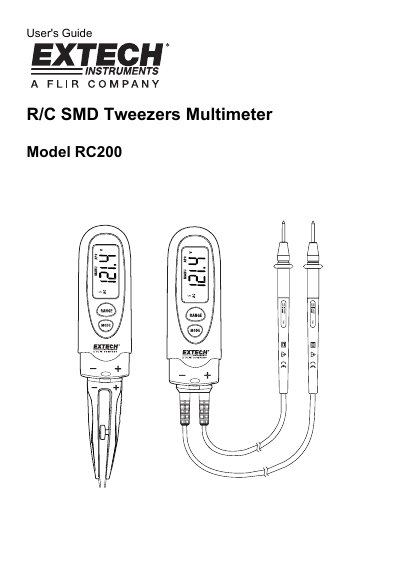

Extech RC200 R/C SMD Tweezers Multimeter User's Guide
The Extech RC200 is a multimeter designed to measure SMD components using its tweezers adaptor or AC/DC voltage using test lead adaptors. It features an LCD display with auto-ranging capabilities and various measurement modes including resistance, capacitance, diode testing, and continuity checks.
The manual provides detailed instructions on operating the device, including how to switch between scan and manual modes, perform specific measurements like capacitance and diode tests, and maintain the unit. It also outlines safety warnings regarding high voltage and battery handling.
EXTECH RC200 specifications
| DC Voltage Range | 600V |
|---|---|
| AC Voltage Frequency Response | 50 to 60Hz |
| Capacitance Range | 600uF |
| Battery Type | Two button batteries, AG13/LR44 or equivalent |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Weight | 65g (2.302 oz) |
Source: Extech RC200 R/C SMD Tweezers Multimeter User's Guide
All EXTECH RC200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I turn the meter off manually?
Press and hold the MODE button for 4 seconds to manually turn power off.
What happens if I measure voltage with the Tweezer adaptor installed?
You must never measure voltage with the Tweezer adaptor installed as it is unsafe.
What is the Extech RC200?
It is an R/C SMD Tweezer MultiMeter used for sorting or inspecting SMD components.
What batteries are included with the RC200?
The meter comes complete with two AG13/LR44 batteries.
