Key facts
- Brand
- EXTECH
- Model
- FG100
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-01
Start here

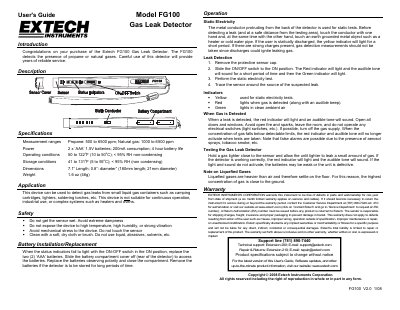

Extech FG100 Gas Leak Detector User's Guide
This document is the User's Guide for the Extech FG100 Gas Leak Detector, a device designed to detect the presence of propane or natural gas. It provides instructions on operation, including how to perform static electricity tests and trace the sensor around suspected leak sources. The guide also details the device's indicators, such as the red light for gas detection and the green light for clean ambient air.
Read onlineEXTECH FG100 specifications
| Measurement ranges (Propane) | 500 to 6500 ppm |
|---|---|
| Measurement ranges (Natural gas) | 1000 to 6500 ppm |
| Power source | 2x 'AAA' 1.5V batteries |
| Battery life | 4 hour battery life |
| Operating temperature | 50 to 122°F (10 to 50°C) |
| Dimensions | 7.1" Length; 0.8" diameter |
| Weight | 1.6 oz (46g) |
All EXTECH FG100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What gases does the FG100 detect?
The FG100 detects the presence of propane or natural gases.
What does the red indicator light mean?
The red indicator lights when gas is detected, along with an audible beep.
What gases can the EXTECH FG100 detect?
The device detects combustible gases, specifically Liquefied Natural Gas (LNG) and Liquefied Propane Gas (LPG).
How long can the device operate continuously?
The unit supports continuous operation for up to 4 hours.
