Start here

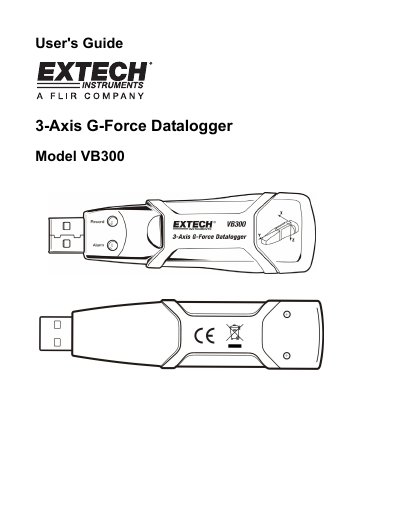

EXTECH VB300 3-Axis G-Force Datalogger User's Guide
The EXTECH VB300 is a portable data logger designed to measure and record shock and vibration (acceleration) over a +18g range. It features a built-in accelerometer, real-time clock for time-stamped data, and the ability to operate in Normal or Motion Detection modes. The device includes a long-life 1000-hour lithium battery and connects via USB for configuration and data download.
Read onlineEXTECH VB300 specifications
| Resolution | 0.00625g |
|---|---|
| Accuracy | +/-0.5g |
| Frequency Range | 0 to 60Hz |
| Battery Life | 1000 hours approx. |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
All EXTECH VB300 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How do I stop logging data?
Press and hold the datalogger start/stop button until the red LED flashes four times.
What does a single green flash every 10 seconds indicate?
It indicates that the device is currently logging data with no alarm active.
What is the VB300?
The VB300 is a three-axis G-force datalogger that uses built-in accelerometers to record when shock occurs.
What is the physical size of the device?
The device measures 3.71.1 x 0.8 inches (95 x 28 x 21mm).
