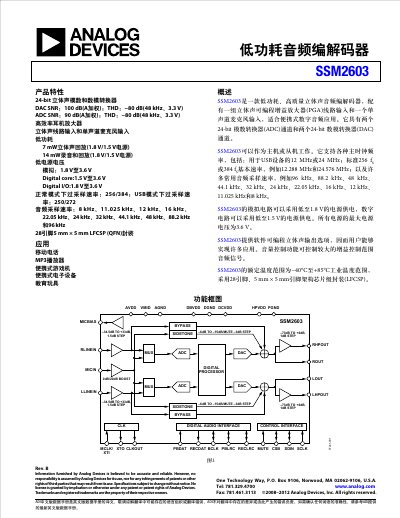

Analog Devices SSM2603 Low-Power Audio Codec Datasheet
The SSM2603 is a low-power, high-quality stereo audio codec designed for portable digital audio applications such as mobile phones, MP3 players, and handheld game consoles. It features two 24-bit analog-to-digital converter (ADC) channels and two 24-bit digital-to-analog converter (DAC) channels. This manual is written in Chinese.
Read onlineAnalog Devices SSM2603 specifications
| ADC SNR (A‑weighted) | 90 dB |
|---|---|
| DAC SNR (A‑weighted) | 100 dB |
| Stereo playback power consumption (1.8 V/1.5 V) | 7 mW |
| Stereo playback power consumption (3.3 V) | 22 mW |
| AVDD supply voltage range | 1.8 V – 3.6 V |
| Digital core supply voltage range | 1.5 V – 3.6 V |
| Digital I/O supply voltage range | 1.8 V – 3.6 V |
| Package type | 28‑lead 5 mm × 5 mm LFCSP (QFN) |
| Supported audio sample rates | 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
