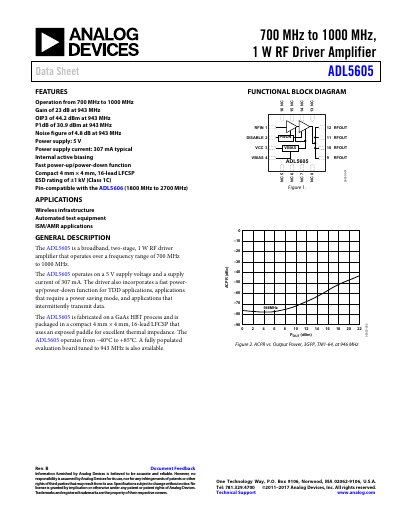

Analog Devices ADL5605 RF Driver Amplifier Data Sheet
Datasheet 18 pages · 508 KB · EN
The ADL5605 is a two-stage RF driver amplifier fabricated on a GaAs HBT process. It operates over a frequency range of 700 MHz to 1000 MHz with a supply voltage of 5 V and a typical current draw of 307 mA. The device features an internal active biasing circuit and a fast power-up/power-down function suitable for TDD applications.
Read onlineAnalog Devices ADL5605 specifications
| Frequency Range | 700 MHz to 1000 MHz |
|---|---|
| Output Power (P1dB) | 30.9 dBm at 943 MHz |
| Gain | 23 dB at 943 MHz |
| Noise Figure | 4.8 dB at 943 MHz |
| Supply Voltage | 5 V |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 16-lead LFCSP |
Source: Analog Devices ADL5605 RF Driver Amplifier Data Sheet
All Analog Devices ADL5605 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating frequency range of the ADL5605?
The device operates over a frequency range of 700 MHz to 1000 MHz.
What is the typical supply current?
The typical power supply current is 307 mA at 5 V.
What is the operating frequency range of the ADL5605?
The ADL5605 operates from 700 MHz to 1000 MHz.
What supply voltage does the ADL5605 require?
It requires a 5 V power supply.
