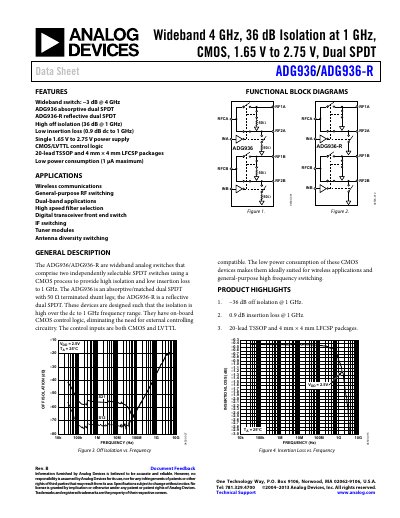

Analog Devices ADG936/ADG936-R Wideband Analog Switch Data Sheet
The ADG936 and ADG936-R are wideband analog switches comprising two independently selectable SPDT switches using a CMOS process. The ADG936 is an absorptive/matched dual SPDT with 50 Ω terminated shunt legs, while the ADG936-R is a reflective dual SPDT. These devices are designed to provide high isolation and low insertion loss from DC to 1 GHz.
Read onlineAnalog Devices ADG936/ADG936-R specifications
| Off Isolation (1 GHz) | 36 dB typical |
|---|---|
| Power Supply Voltage | 1.65 V to 2.75 V |
| Quiescent Power Supply Current | 1 µA maximum |
| Operating Temperature Range | -40°C to +85°C |
Source: Analog Devices ADG936/ADG936-R Wideband Analog Switch Data Sheet
All Analog Devices ADG936/ADG936-R documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the off isolation at 1 GHz?
The off isolation is 36 dB at 1 GHz.
From: Analog Devices ADG936/ADG936-R Wideband Analog Switch Data Sheet
What is the power supply voltage range?
The devices operate from a single power supply of 1.65 V to 2.75 V.
From: Analog Devices ADG936/ADG936-R Wideband Analog Switch Data Sheet
What are the available package types for this switch?
The ADG936 is available in a 20-lead TSSOP and a 4 mm x 4 mm LFCSP package.
What is the operating frequency range for this switch?
The device operates from DC up to a maximum of 2 GHz.
What is the off‑isolation of the ADG936 at 1 GHz?
The device provides 36 dB off‑isolation at 1 GHz.
What supply voltage range does the ADG936 support?
It operates from 1.65 V to 2.75 V.
