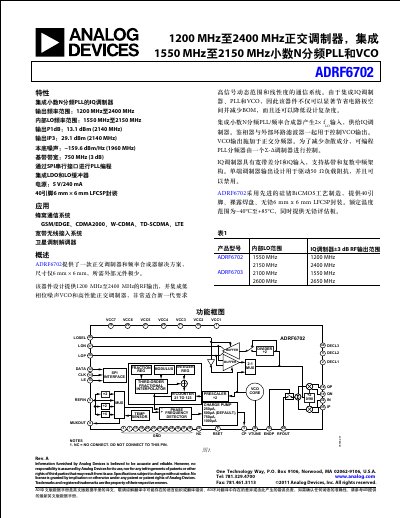

ADR6702 Quadrature Modulator
The ADRF6702 is an integrated quadrature modulator and fractional-N PLL frequency synthesizer designed for next-generation communication systems. It provides an RF output frequency range of 1200 MHz to 2400 MHz and integrates a low phase noise VCO and high-performance quadrature modulator. The device is manufactured using advanced silicon-germanium BiCMOS technology in a 40-lead, exposed pad, lead-free 6 mm x 6 mm LFCSP package. This manual is written in Chinese.
Read onlineAnalog Devices ADRF6702 specifications
| Output frequency range | 1200 MHz to 2400 MHz |
|---|---|
| Internal LO frequency range | 1550 MHz to 2150 MHz |
| Output P1dB | 13.1 dBm @ 2140 MHz |
| Output IP3 | 29.1 dBm @ 2140 MHz |
| Noise floor | −159.6 dBm/Hz @ 1960 MHz |
| Baseband bandwidth | 750 MHz (3 dB) |
| Power supply | 5 V, 240 mA |
| Package | 40‑lead 6 mm × 6 mm LFCSP |
| Operating temperature range | −40 °C to +85 °C |
Source: Analog Devices ADRF6702 Quadrature Modulator Data Sheet
All Analog Devices ADRF6702 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the RF output frequency range of the ADRF6702?
The device provides an RF output ranging from 1200 MHz to 2400 MHz.
What is the internal local oscillator frequency range?
The integrated PLL and VCO support an internal LO frequency from 1550 MHz to 2150 MHz.
What is the output frequency range of the ADRF6702?
The ADRF6702 can generate RF output from 1200 MHz to 2400 MHz.
From: Analog Devices ADRF6702 Quadrature Modulator Data Sheet
What internal LO frequency range does the ADRF6702 support?
The internal LO can be tuned between 1550 MHz and 2150 MHz.
From: Analog Devices ADRF6702 Quadrature Modulator Data Sheet
