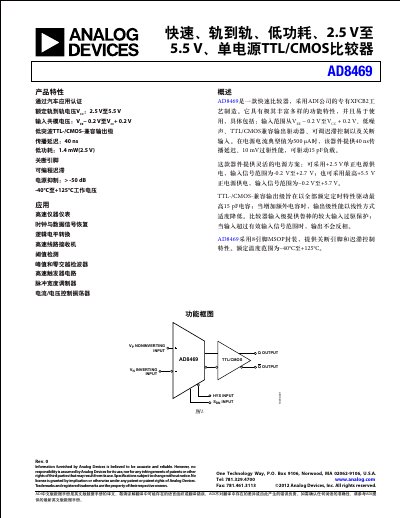

Analog Devices AD8469 Comparator Datasheet
The AD8469 is a fast comparator manufactured using Analog Devices' proprietary XFCB2 process. It features a rail-to-rail input voltage range, low noise, TTL/CMOS compatible output drivers, programmable hysteresis control, and a shutdown input. The device is designed for applications such as high-speed instrumentation, clock and data signal recovery, logic level translation, and threshold detection. This manual is written in Chinese.
Read onlineAnalog Devices AD8469 specifications
| Supply Voltage Range | 2.5 V to 5.5 V |
|---|---|
| Operating Temperature Range | -40°C to +125°C |
| Propagation Delay (Typical) | 40 ns |
| Power Consumption (Typical) | 1.4 mW |
| Package Type | 8-lead MSOP |
| Input Common-Mode Voltage Range | VEE - 0.2 V to VCC + 0.2 V |
All Analog Devices AD8469 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the AD8469?
The device operates with a single supply voltage ranging from 2.5 V to 5.5 V.
Does the AD8469 have a shutdown feature?
Yes, it includes a shutdown input that can be used to power down the device.
What is the typical supply current?
The device operates on a 500 µA typical supply current.
Does this comparator have adjustable hysteresis?
Yes, it features adjustable hysteresis control via the HYS pin.
