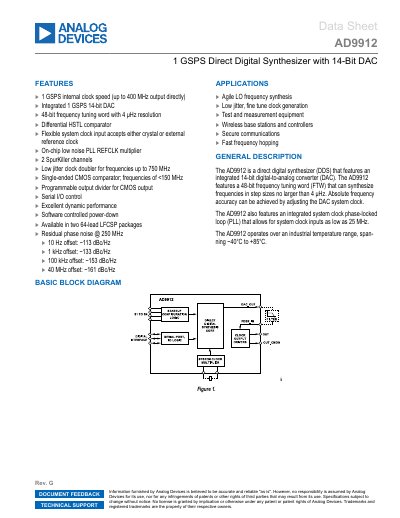

Analog Devices AD9912 1 GSPS Direct Digital Synthesizer with 14-Bit DAC Datasheet
The AD9912 is a direct digital synthesizer (DDS) that features an integrated 14-bit digital-to-analog converter (DAC). It utilizes a 48-bit frequency tuning word to synthesize frequencies with step sizes as small as 4 µHz. The device includes an on-chip low noise PLL REFCLK multiplier and supports differential HSTL or single-ended CMOS comparators for feedback inputs.
The AD9912 operates over an industrial temperature range from −40°C to +85°C. It is available in two 64-lead LFCSP packages and offers software-controlled power-down modes. Key applications include agile LO frequency synthesis, low jitter clock generation, test equipment, wireless base stations, and secure communications.
Analog Devices AD9912 specifications
| Internal Clock Speed | 1 GSPS |
|---|---|
| Integrated DAC Resolution | 14-bit |
| Frequency Tuning Word (FTW) | 48-bit |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 64-lead LFCSP |
| DAC Full-Scale Output Current | 20 mA to 31.7 mA |
| Jitter (HSTL Driver) | 1.5 ps |
Source: Analog Devices AD9912 1 GSPS Direct Digital Synthesizer with 14-Bit DAC Datasheet
All Analog Devices AD9912 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the frequency resolution of the AD9912?
The device features a 48-bit frequency tuning word that can synthesize frequencies in step sizes no larger than 4 µHz.
From: Analog Devices AD9912 1 GSPS Direct Digital Synthesizer with 14-Bit DAC Datasheet
What is the maximum system clock speed?
The internal clock speed reaches up to 1 GSPS, with output directly available up to 400 MHz.
From: Analog Devices AD9912 1 GSPS Direct Digital Synthesizer with 14-Bit DAC Datasheet
What is the maximum output frequency of the AD9912 Rev. F?
The device can generate output frequencies directly up to 400 MHz.
From: Analog Devices AD9912 Rev. F 1 GSPS Direct Digital Synthesizer Datasheet
What supply voltages are required for the AD9912 Rev. F?
It uses AVDD = 1.8 V ± 5 %, AVDD3 = 3.3 V ± 5 %, and DVDD = 1.8 V ± 5 % among other rails.
From: Analog Devices AD9912 Rev. F 1 GSPS Direct Digital Synthesizer Datasheet
