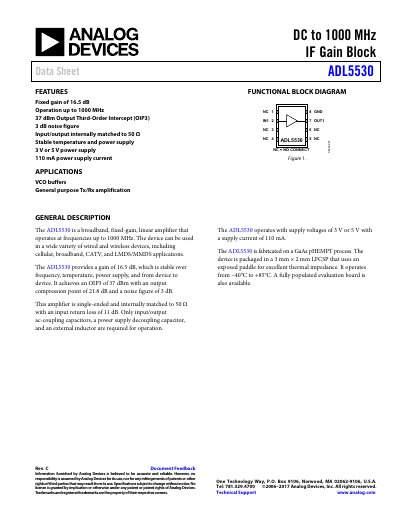

Analog Devices ADL5530 IF Gain Block Data Sheet
Datasheet 17 pages · 1.1 MB · EN
The ADL5530 is a broadband, fixed-gain, linear amplifier designed for frequencies up to 1000 MHz. It provides a stable gain of 16.5 dB across frequency, temperature, power supply variations, and between devices. The device achieves an Output Third-Order Intercept (OIP3) of 37 dBm with a noise figure as low as 2 dB at certain frequencies.
Read onlineAnalog Devices ADL5530 specifications
| Gain (S21) | 16.5 dB |
|---|---|
| Input Return Loss (S11) | -11 dB |
| Noise Figure | 2.0 to 5.0 dB |
| Supply Voltage (VPOS) | 3 V or 5 V |
| Supply Current | 110 mA |
| Operating Temperature Range | -40°C to +85°C |
All Analog Devices ADL5530 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating frequency of the ADL5530?
The device operates at frequencies up to 1000 MHz.
What supply voltages are supported by the ADL5530?
The amplifier operates with supply voltages of 3 V or 5 V.
What is the typical gain of the ADL5530?
The ADL5530 provides a typical gain of 16.5 dB.
What supply voltages can be used with the ADL5530?
The device can be powered from either a 3 V or a 5 V supply.
