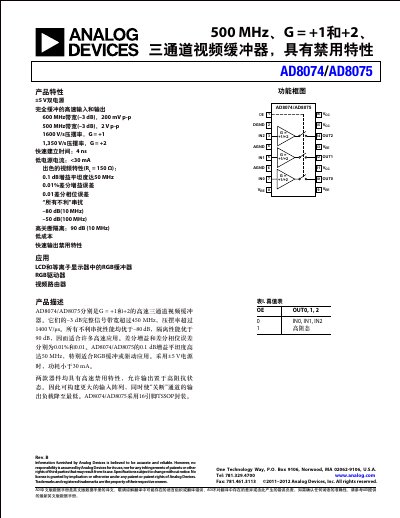

Analog Devices AD8074/AD8075 Three-Channel Video Buffer Datasheet
The AD8074 and AD8075 are high-speed, three-channel video buffers featuring gain options of +1 and +2. Designed for RGB buffering and driving applications, these devices offer high bandwidth, fast settling time, low power current, and excellent video characteristics such as 0.1 dB gain flatness and low differential gain and phase errors. They include a high-speed output disable feature to allow outputs to be placed in a high-impedance state, making them suitable for constructing larger input arrays while minimizing load on disabled channels. Both devices are available in a 16-lead TSSOP package. This manual is written in Chinese.
Read onlineAnalog Devices AD8074/AD8075 specifications
| Bandwidth (–3 dB) | 600 MHz (G = +1), 500 MHz (G = +2) |
|---|---|
| Slew Rate | 1600 V/µs (G = +1), 1350 V/µs (G = +2) |
| Settling Time | 4 ns |
| Power Supply Current | < 30 mA |
| Gain Flatness | 0.1 dB (up to 50 MHz) |
| Package | 16-lead TSSOP |
Source: Analog Devices AD8074/AD8075 Three-Channel Video Buffer Datasheet
All Analog Devices AD8074/AD8075 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Analog Devices AD8074/AD8075 Three-Channel Video Buffer Datasheet 16 p
- ANALOG DEVICES 500 MHz G = +1 +2 Triple Video Buffers with Disable AD8074/AD8075 English products handbook Rev B 15 p
- Analog Devices AD8074/AD8075 Datasheet 16 p
- ANALOG DEVICES 500 MHz G = +1 +2 Triple Video Buffers with Disable AD8074/AD8075 handbook 16 p
Questions answered in these manuals
What are the gain options for the AD8074/AD8075?
The AD8074 has a gain of +1, and the AD8075 has a gain of +2.
From: Analog Devices AD8074/AD8075 Three-Channel Video Buffer Datasheet
What is the bandwidth of the AD8074 and AD8075?
The AD8074 offers 600 MHz bandwidth, while the AD8075 offers 500 MHz bandwidth.
From: Analog Devices AD8074/AD8075 Three-Channel Video Buffer Datasheet
What supply voltage range does the AD8074/AD8075 require?
The devices operate from +4.5 V to +5.5 V.
What is the typical slew rate of the AD8074?
The typical slew rate for the AD8074 (G = +1) is 1600 V/µs.
What is the maximum supply current of the AD8074/AD8075?
The devices draw less than 30 mA from a +5 V supply.
From: ANALOG DEVICES 500 MHz G = +1 +2 Triple Video Buffers with Disable AD8074/AD8075 handbook
What does the output‑disable feature do?
It allows the outputs to be placed in a high‑impedance state, reducing loading when building larger input arrays.
From: ANALOG DEVICES 500 MHz G = +1 +2 Triple Video Buffers with Disable AD8074/AD8075 handbook
