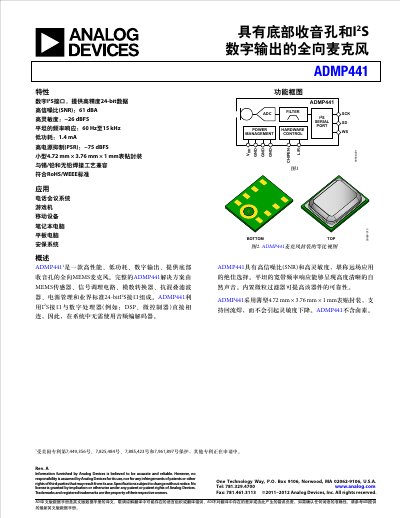

Analog Devices ADMP441 MEMS Microphone Datasheet
The ADMP441 is an omnidirectional MEMS microphone featuring a bottom port for noise rejection. It includes a complete solution with the MEMS sensor, signal conditioning, ADC, anti-aliasing filter, power management, and a standard 24-bit I2S interface, eliminating the need for external audio codecs in many applications.
Key specifications include a high signal-to-noise ratio of 61 dBA, sensitivity of -26 dBFS at 94 dB SPL, and a flat frequency response from 60 Hz to 15 kHz. The device operates on a supply voltage between 1.8 V and 3.3 V with low power consumption in normal mode (1.4 mA). It is housed in a compact 4.72 mm x 3.76 mm x 1 mm surface-mount package compatible with lead-free soldering. This manual is written in Chinese.
Analog Devices ADMP441 specifications
| Sensitivity (94 dB SPL) | -26 dBFS |
|---|---|
| Signal-to-Noise Ratio (SNR) | 61 dBA |
| Frequency Response (-3 dB points) | 60 Hz to 15 kHz |
| Supply Voltage (VDD) | 1.8 V to 3.3 V |
| Normal Mode Current (IDD) @ 1.8V | 1.4 mA |
| Package Dimensions | 4.72 mm x 3.76 mm x 1 mm |
| Operating Temperature Range | -40°C to +85°C |
All Analog Devices ADMP441 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the frequency response of the ADMP441?
The device has a flat frequency response with -3 dB points at 60 Hz and 15 kHz.
What is the supply voltage range for the ADMP441?
The device operates with a power supply voltage (VDD) between 1.8 V and 3.3 V.
What is the typical supply current in normal mode at 1.8 V?
The ADMP441 draws 1.4 mA in normal mode when powered at 1.8 V.
From: Analog Devices ADMP441 Digital MEMS Microphone Datasheet
What is the maximum acoustic input level the microphone can handle?
The device can tolerate acoustic peaks up to 120 dB SPL.
