Start here

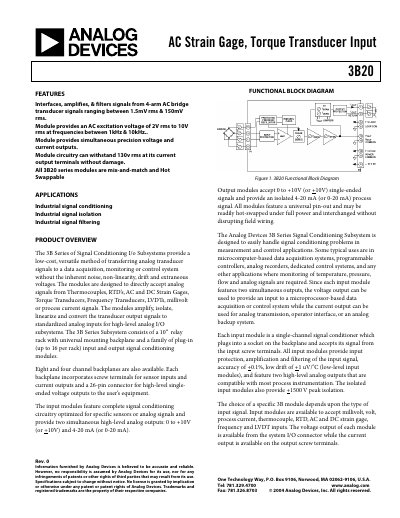

Analog Devices 3B20 AC Strain Gage Torque Transducer Input Datasheet
The Analog Devices 3B20 is a wideband, single-channel signal-conditioning module designed to interface with 4-arm AC bridge transducer signals ranging from 1.5mV rms to 150mV rms. It provides simultaneous precision voltage and current outputs and includes an AC excitation voltage capability of 2V rms to 10V rms at frequencies between 1kHz and 10kHz. The module is part of the 3B Series Signal Conditioning I/O Subsystems, which are mix-and-match and hot-swappable for industrial signal conditioning, isolation, and filtering applications.
Read onlineAnalog Devices 3B20 specifications
| Input Range | 1.5 mV rms to 150 mV rms |
|---|---|
| Excitation Voltage | 2 V rms to 10 V rms |
| Excitation Frequency | 1 kHz to 10 kHz |
| Voltage Output Range | -10 V to +10 V |
| Bandwidth | 100 Hz |
| Input Resistance | 100 MΩ |
| Input Protection | 130 V rms maximum |
| Temperature Range | -25°C to +85°C |
| Dimensions | 80.0 mm x 86.2 mm x 19.7 mm |
Source: Analog Devices 3B20 AC Strain Gage Torque Transducer Input Datasheet
All Analog Devices 3B20 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input range for the 3B20 module?
The module interfaces 4-arm AC bridge transducer signals ranging between 1.5mV rms and 150mV rms.
From: Analog Devices 3B20 AC Strain Gage Torque Transducer Input Datasheet
What excitation voltage does the 3B20 provide?
It provides an AC excitation voltage of 2V rms to 10V rms at frequencies between 1kHz and 10kHz.
From: Analog Devices 3B20 AC Strain Gage Torque Transducer Input Datasheet
What input signal range does the 3B20 module accept?
The module accepts input signals from 1.5 mV rms up to 150 mV rms from 4‑arm AC bridge transducers.
What excitation voltage and frequency can the module generate?
The module can generate an AC excitation voltage from 2 V rms to 10 V rms, selectable between 1 kHz and 10 kHz.
