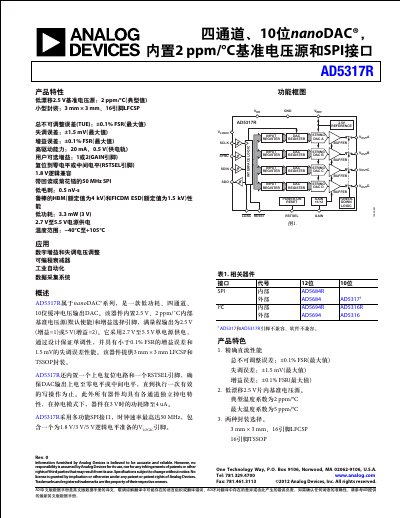

Analog Devices AD5317R 4-Channel 10-Bit nanoDAC Datasheet
Datasheet 28 pages · 1 MB · ZH
The AD5317R is a low-power, 4-channel, 10-bit buffered voltage output DAC belonging to the nanoDAC® family. It features an internal 2.5V reference source with a typical temperature coefficient of 2 ppm/°C and supports user-selectable gain of 1 or 2. The device operates from a single supply of 2.7 V to 5.5 V and offers high drive capability up to 20 mA. This manual is written in Chinese.
Read onlineAnalog Devices AD5317R specifications
| Resolution | 10 Bits |
|---|---|
| Total Unadjusted Error (TUE) | +0.1% of FSR maximum |
| Offset Error | +/- 1.5 mV maximum |
| Gain Error | +0.1% of FSR maximum |
| Supply Voltage Range | 2.7 V to 5.5 V |
| SPI Clock Rate | Up to 50 MHz |
| Reference Voltage | 2.5 V, 2 ppm/°C typical |
| Output Current Capability | 20 mA |
All Analog Devices AD5317R documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical temperature coefficient of the internal reference?
The internal 2.5 V reference has a typical temperature coefficient of 2 ppm/°C.
Can the AD5317R operate with 1.8 V logic?
Yes, the device features 1.8 V/3 V/5 V logic compatibility.
