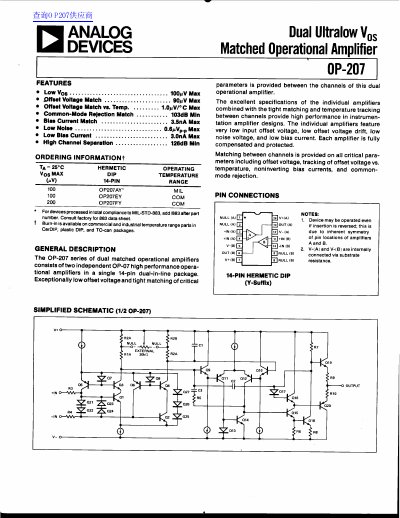

Analog Devices OP-207 Dual Ultralow Voltage Matched Operational Amplifier Datasheet
The OP-207 series consists of two independent OP-07 high performance operational amplifiers in a single 14-pin dual-in-line package. These devices are designed for instrumentation amplifier designs requiring exceptionally low offset voltage, low offset voltage drift, low noise voltage, and low bias current. The individual amplifiers feature tight matching and temperature tracking between channels for critical parameters including offset voltage, bias currents, and common-mode rejection.
Read onlineAnalog Devices OP-20 specifications
| Offset Voltage Match | 90uV Max |
|---|---|
| Low Noise | 0.6nVp-p Max |
| Low Bias Current | 3.0nA Max |
| Channel Separation | 126dB Min |
| Package Type | 14-Pin Dual-in-line |
| Operating Temperature (OP-207A) | -55°C to +125°C |
Source: Analog Devices OP-207 Dual Ultralow Voltage Matched Operational Amplifier Datasheet
All Analog Devices OP-20 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the OP-207?
The absolute maximum supply voltage is +/- 22V.
From: Analog Devices OP-207 Dual Ultralow Voltage Matched Operational Amplifier Datasheet
How many independent amplifiers are in the OP-207?
The OP-207 series consists of two independent operational amplifiers in a single package.
From: Analog Devices OP-207 Dual Ultralow Voltage Matched Operational Amplifier Datasheet
Is the OP200 pin compatible with other amplifiers?
Yes, it is pin compatible to OP221, MC1458, and LT1013.
From: Analog Devices OP200 Dual Operational Amplifier Datasheet
What are the available package suffixes?
The device is available in Die Form (A), 8-Pin Hermetic DIP (Z), EPOXY MINI-DIP (P), and 16-Pin SOIC (S).
From: Analog Devices OP200 Dual Operational Amplifier Datasheet
What is the maximum supply current?
The maximum supply current is 55uA at 2.5V or 80uA at 15V.
Does the OP-20 require external components?
No, it requires no external components.
