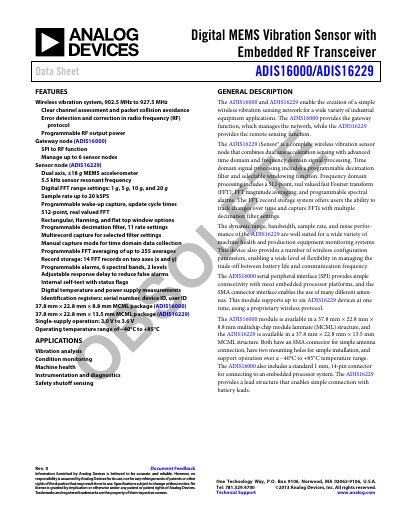

Analog Devices ADIS16000/ADIS16229 Digital MEMS Vibration Sensor Data Sheet
The ADIS16000 and ADIS16229 enable the creation of a simple wireless vibration sensing network for industrial equipment applications. The ADIS16000 provides the gateway function, which manages the network, while the ADIS16229 provides the remote sensing function. The ADIS16229 is a complete wireless vibration sensor node that combines dual axis acceleration sensing with advanced time domain and frequency domain signal processing.
Read onlineAnalog Devices ADIS16000/ADIS16229 specifications
| Sensitivity (FFT) | 0.3052 mg/LSB |
|---|---|
| Sensitivity (Time Domain) | 0.6104 mg/LSB |
| Sample Rate | 20 kSPS |
| Operating Temperature Range | −40°C to +85°C |
| Operating Voltage | 3.0 V to 3.6 V |
Source: Analog Devices ADIS16000/ADIS16229 Digital MEMS Vibration Sensor Data Sheet
All Analog Devices ADIS16000/ADIS16229 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range for these sensors?
The sensors operate over a temperature range of −40°C to +85°C.
From: Analog Devices ADIS16000/ADIS16229 Digital MEMS Vibration Sensor Data Sheet
How many sensor nodes can the ADIS16000 gateway manage?
The ADIS16000 gateway can manage up to 6 sensor nodes.
From: Analog Devices ADIS16000/ADIS16229 Digital MEMS Vibration Sensor Data Sheet
What is the operating temperature range for these devices?
The devices operate within a temperature range of -40°C to +85°C.
From: Analog Devices ADIS16000/ADIS16229 Wireless Vibration Sensor Datasheet
How many sensor nodes can the gateway manage?
The ADIS16000 gateway node can manage up to six ADIS16229 sensor nodes.
From: Analog Devices ADIS16000/ADIS16229 Wireless Vibration Sensor Datasheet
