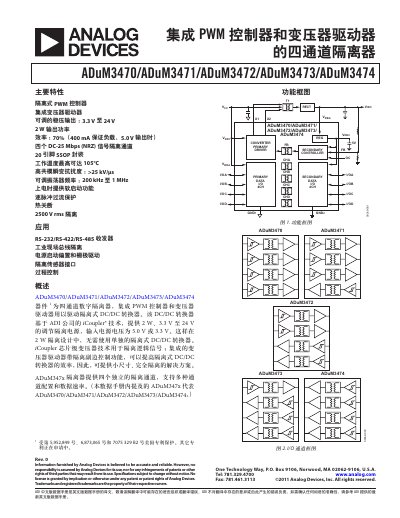

Analog Devices ADuM347x Series Four-Channel Isolated ICs Datasheet
The ADuM347x series consists of four-channel digital isolators that integrate a PWM controller and a transformer driver to drive an isolated DC/DC converter. Based on Analog Devices' iCoupler technology, these devices provide a 2 W regulated isolated power supply ranging from 3.3 V to 24 V, eliminating the need for separate isolated converters in many designs.
The device features four independent isolation channels supporting data rates up to 25 Mbps (CRWZ grade) or 1 Mbps (ARWZ grade). It includes a soft-start function on power-up, pulse-by-pulse overcurrent protection, and thermal shutdown. The package is available in a 20-lead SSOP form factor with an operating temperature range up to 105 °C.
Analog Devices ADuM3471 specifications
| Isolated Output Voltage (VISO) | 3.3 V to 24 V adjustable |
|---|---|
| Output Power | 2 W |
| Efficiency (Typical) | 70% |
| Isolation Voltage | 2500 V rms |
| Common Mode Transient Immunity | >25 kV/μs |
| Operating Temperature | -40°C to +105°C |
| Package Type | 20-lead SSOP |
| Switching Frequency Range | 200 kHz to 1 MHz |
Source: Analog Devices ADuM347x Series Four-Channel Isolated ICs Datasheet
All Analog Devices ADuM3471 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output power of the ADuM347x series?
The maximum output power is 2 W.
From: Analog Devices ADuM347x Series Four-Channel Isolated ICs Datasheet
What is the operating temperature range for these devices?
The devices can operate at temperatures up to 105 °C.
From: Analog Devices ADuM347x Series Four-Channel Isolated ICs Datasheet
What is the maximum data rate supported by the ADuM347x devices?
The AR version supports up to 1 Mbps, while the CR version supports up to 25 Mbps.
From: ANALOG DEVICES ADuM3470/ADuM3471/ADuM3472/ADuM3473/ADuM3474
What isolation voltage rating do the ADuM347x isolators provide?
They are rated for 2500 V rms isolation between primary and secondary sides.
From: ANALOG DEVICES ADuM3470/ADuM3471/ADuM3472/ADuM3473/ADuM3474
