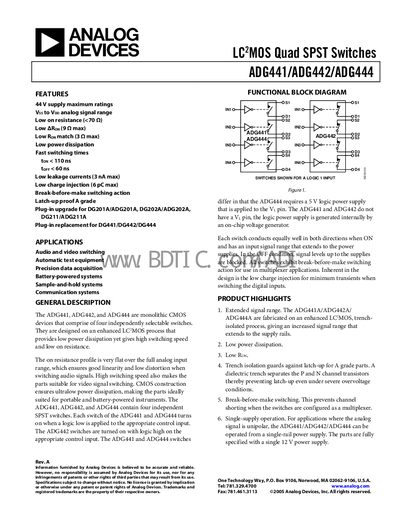

The ADG441, ADG442, and ADG444 are monolithic CMOS devices that comprise of four independently selectable switches. They are designed on an enhanced LC2MOS process that provides low on resistance, low power dissipation, and fast switching times.
The ADG441, ADG442 and ADG444 are monolithic CMOS quad SPST switches designed on an enhanced LC‑MOS process. They offer low on‑resistance, low leakage, low charge injection and break‑before‑make action, making them suitable for audio, video, test equipment and battery‑powered applications.
The devices support both dual‑supply (±15 V) and single‑supply (12 V) operation, feature trench isolation for latch‑up protection, and provide a wide analog signal range that extends to the supply rails.
| Maximum Supply Voltage (Vop‑Vss) | 44 V |
|---|---|
| On‑Resistance (Ron) typical | 70 Ω |
| ARon typical | 4 Ω |
| Ron Match typical | 1 Ω |
| Source OFF Leakage (typ) | 0.01 nA |
| Drain OFF Leakage (typ) | 0.01 nA |
| Charge Injection (typ) | 1 pC |
| Switching time ton (typ) | 85 ns |
| Power Dissipation (SOIC package) | 600 mW |
The devices are rated for a maximum supply voltage of 44 V between Vop and Vss.
Typical on‑resistance (Ron) is 70 Ω.
