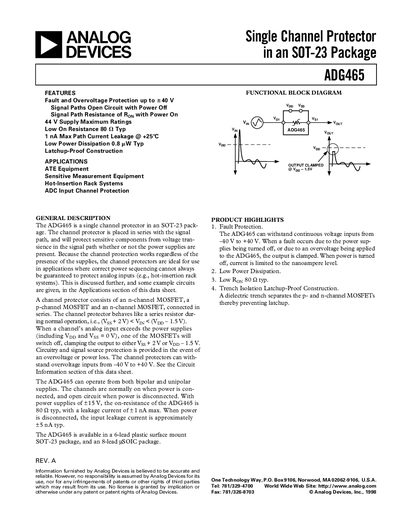

Analog Devices ADG465 Single Channel Protector Data Sheet
The ADG465 is a single channel protector designed to protect sensitive components from voltage transients in the signal path, regardless of whether power supplies are present. It consists of three MOSFETs connected in series and behaves like a series resistor during normal operation. The device is available in 6-lead SOT-23 and 8-lead MSOP packages.
Read onlineAnalog Devices ADG465 specifications
| On Resistance (RON) | 80 Ω typical |
|---|---|
| Fault and overvoltage protection | up to ±40 V |
| Operating Temperature Range | -40°C to +85°C |
| Supply maximum ratings | 44 V |
Source: Analog Devices ADG465 Single Channel Protector Data Sheet
All Analog Devices ADG465 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the on resistance of the ADG465?
The on resistance is 80 Ω typical.
From: Analog Devices ADG465 Single Channel Protector Data Sheet
What voltage range does the ADG465 protect against?
It provides fault and overvoltage protection up to ±40 V.
From: Analog Devices ADG465 Single Channel Protector Data Sheet
What voltage range can the ADG465 protect against?
It can withstand continuous voltage inputs from –40 V to +40 V.
From: Analog Devices ADG465 Single Channel Protector Datasheet
What is the on‑resistance of the ADG465?
The on‑resistance is 80 Ω typical.
From: Analog Devices ADG465 Single Channel Protector Datasheet
