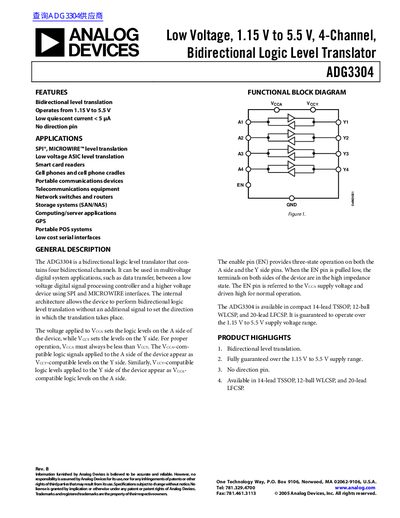

ANALOG DEVICES Low Voltage 1.15 V to 5.5 V 4-Channel Bidirectional Logic Level Translator ADG3304 handbook
The ADG3304 is a bidirectional logic level translator containing four channels designed for multivoltage digital system applications. It facilitates data transfer between low voltage controllers and higher voltage devices using SPI and MICROWIRE interfaces without requiring an additional signal to set the translation direction.
The device operates with supply voltages ranging from 1.15 V to 5.5 V, featuring a very low quiescent current of less than 5 pA. It is available in compact 14-lead TSSOP, 12-ball WLCSP, and 20-lead LFCSP packages.
Analog Devices ADG3304 specifications
| Supply Voltage Range (VCCA) | 1.15 V to 5.5 V |
|---|---|
| Quiescent Current | < 5 pA |
| Number of Channels | 4 |
| Maximum Data Rate (3.3V+) | 50 Mbps |
| Operating Temperature Range (TSSOP/LFCSP) | -40°C to +85°C |
| Package Types | 14-lead TSSOP, 12-ball WLCSP, 20-lead LFCSP |
All Analog Devices ADG3304 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the ADG3304 require a direction pin?
No, it does not require an additional signal to set the translation direction.
What are the supported voltage ranges for VCCA and VCCY?
VCCA operates from 1.15 V to 5.5 V, while VCCY operates from 1.65 V to 5.5 V.
What is the maximum data rate supported by the ADG3304?
The ADG3304 can handle data rates up to 50 Mbps.
How much quiescent current does the ADG3304 draw?
The quiescent current is less than 5 pA.
What supply voltage range does the ADG3304 support?
It operates from 1.15 V to 5.5 V on VCCA and from 1.65 V to 5.5 V on VCCY.
Does the ADG3304 require a direction pin?
No, the device performs bidirectional level translation without a direction pin.
