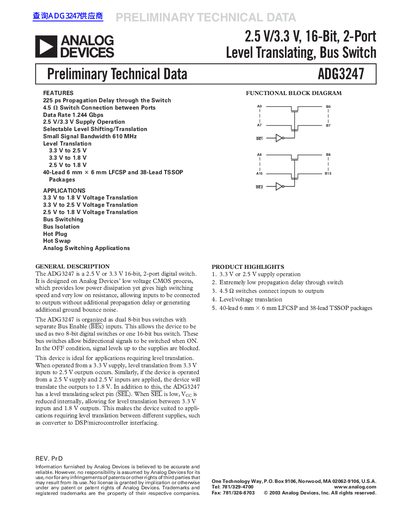

ANALOG DEVICES 2.5 V/3.3 V 16-Bit 2-Port Level Translating Bus Switch ADG3247 handbook
The ADG3247 is a 2.5 V or 3.3 V, 16-bit, 2-port digital switch designed on Analog Devices' low voltage CMOS process. It is organized as dual 8-bit bus switches with separate Bus Enable inputs, allowing the device to function as two 8-bit switches or one 16-bit bus switch. The device supports bidirectional signal switching and includes level translation capabilities between 3.3 V, 2.5 V, and 1.8 V supplies.
Read onlineAnalog Devices ADG3247 specifications
| Propagation Delay | 225 ps |
|---|---|
| Data Rate | 1.244 Gbps |
| Supply Voltage | 2.5 V/3.3 V |
| Small Signal Bandwidth | 610 MHz |
| On Resistance | 4.5 Ω |
| Package Options | 40-Lead LFCSP and 38-Lead TSSOP |
Source: ANALOG DEVICES 2.5 V/3.3 V 16-Bit 2-Port Level Translating Bus Switch ADG3247 handbook
All Analog Devices ADG3247 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate of the ADG3247?
The maximum data rate is 1.244 Gbps when operated from a 3.3 V supply.
From: ANALOG DEVICES 2.5 V/3.3 V 16-Bit 2-Port Level Translating Bus Switch ADG3247 handbook
Can the ADG3247 translate voltage levels?
Yes, it supports level translation between 3.3 V to 2.5 V, 3.3 V to 1.8 V, and 2.5 V to 1.8 V.
From: ANALOG DEVICES 2.5 V/3.3 V 16-Bit 2-Port Level Translating Bus Switch ADG3247 handbook
What voltage levels can the ADG3247 translate?
It can translate 3.3 V to 2.5 V, 3.3 V to 1.8 V, 2.5 V to 1.8 V, and bidirectionally between 3.3 V and 2.5 V.
From: Analog Devices ADG3247 2.5 V/3.3 V 16‑Bit 2‑Port Level Translating Bus Switch Datasheet
What is the propagation delay through the switch?
The typical propagation delay is 0.225 ns (225 ps).
From: Analog Devices ADG3247 2.5 V/3.3 V 16‑Bit 2‑Port Level Translating Bus Switch Datasheet
